Removing Air Box For Throttle Housing (Intake Pipes Upstream Of Throttle Valve)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Loosen screw-type clamp on the throttle housing. Disconnect cable plug of mass air flow meter. -arrows-

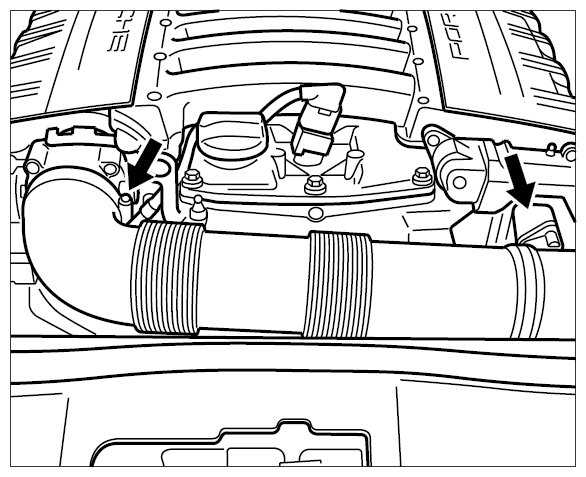

Fig 1: Locating Intake Pipe Screw-Type Clamp
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Turn both fastening bolts on the air cleaner housing from the initial mark to the removal mark. → Fastening bolts

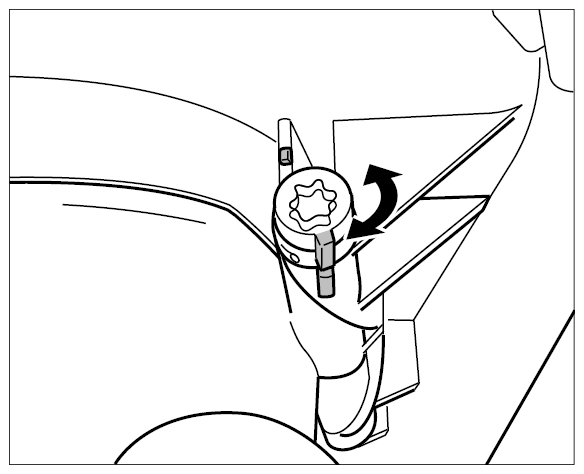

Fig 2: Turning Fastening Bolts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull out both fastening bolts with pointed-nose pliers. Pull intake pipe out of air cleaner housing by joggling it. → Pulling out fastening bolts

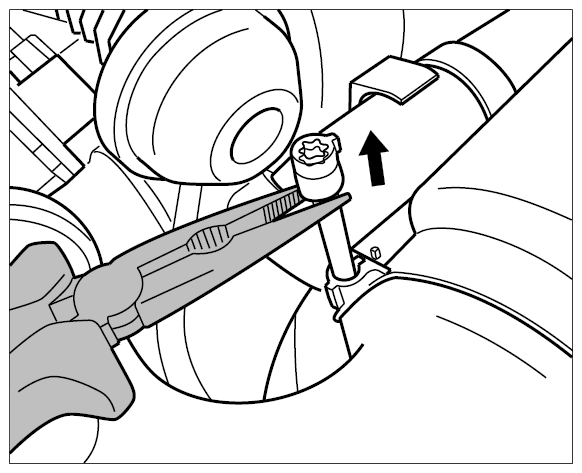

Fig 3: Pulling Out Fastening Bolts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully raise intake pipe and pull off cable for mass air flow meter on the intake pipe underneath the intake pipe. → Cable on intake pipe

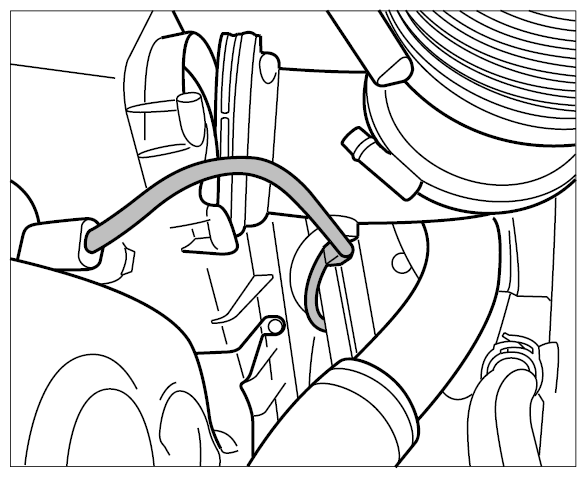

Fig 4: Identifying Cable On Intake Pipe
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove intake pipe.
