Removing Air-Cleaner Element

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove right engine compartment cover.

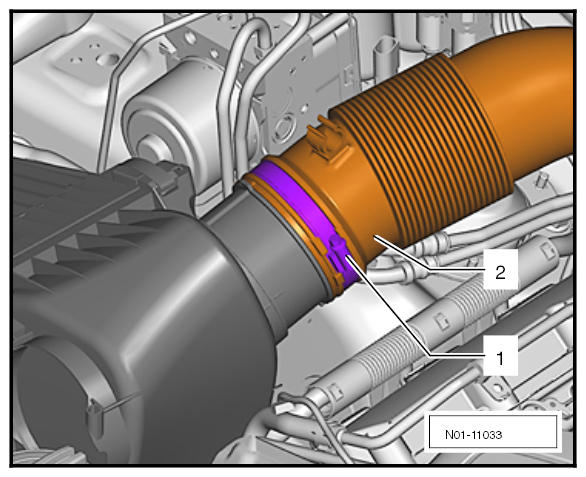

Remove air guide hose -2- by loosening the hose clamp -1- .

Fig 1: Identifying Air Guide Hose
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

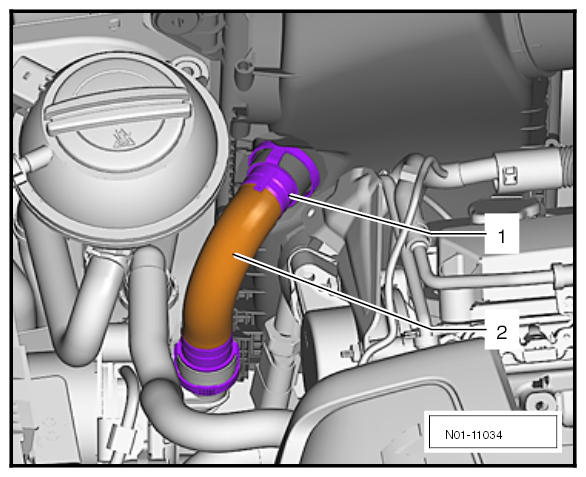

Remove suction hose for secondary air -2- by pressing the release buttons -1- .

Fig 2: Identifying Suction Hose For Secondary Air
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

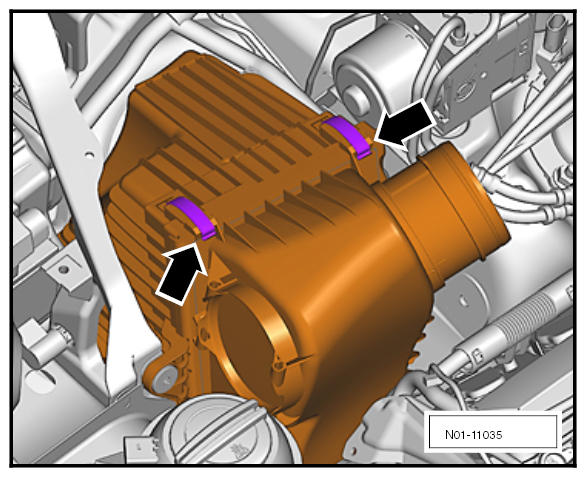

Release retaining clips -arrows- .

Fig 3: Locating Air Cleaner Retaining Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

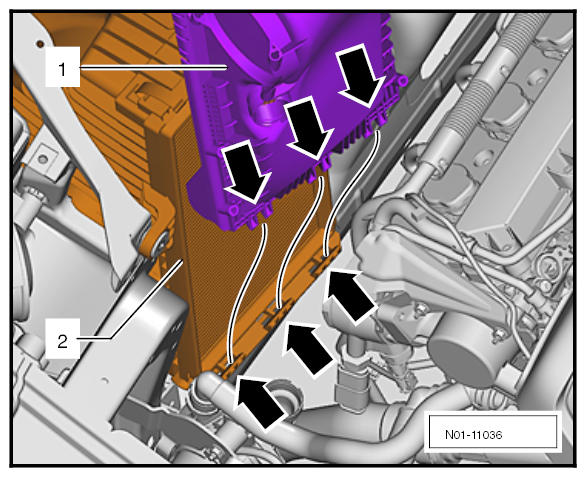

Press upper part of air cleaner -1- off lower part of air cleaner -2- and pull it up out of the openings for the retaining lugs -arrows- .

Fig 4: Locating Lower Part Of Air Cleaner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

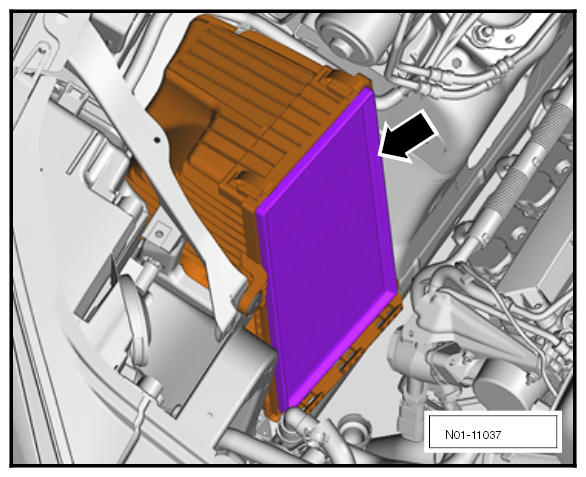

Remove air-cleaner element -arrow- .

Fig 5: Locating Air-Cleaner Element
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
