Preliminary Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove wing trim panel. → Removing Wing Trim Panel
  2. Remove front wheel cover. → Removing Front Wheel Cover

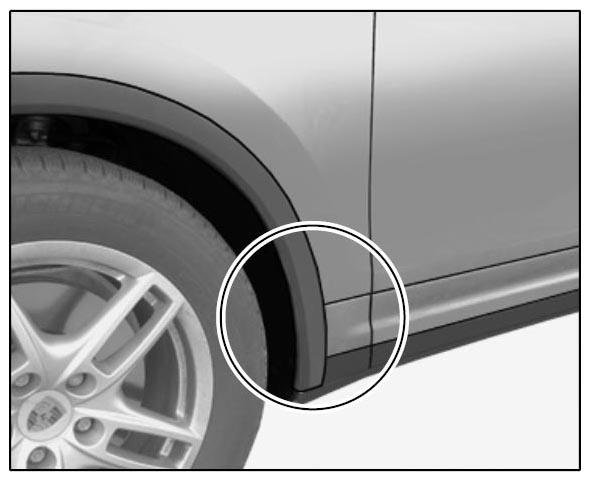

    Fig 1: Identifying Front Wheel Cover Area
    G09940194Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove rear wheel cover. → Removing Rear Wheel Cover
    Fig 2: Identifying Rear Wheel Cover Area
    G09940195Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Remove cover for center underbody. → REMOVING COVER FOR CENTRE UNDERBODY
  5. Open vehicle doors.
