Removing Rear Wheel Cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

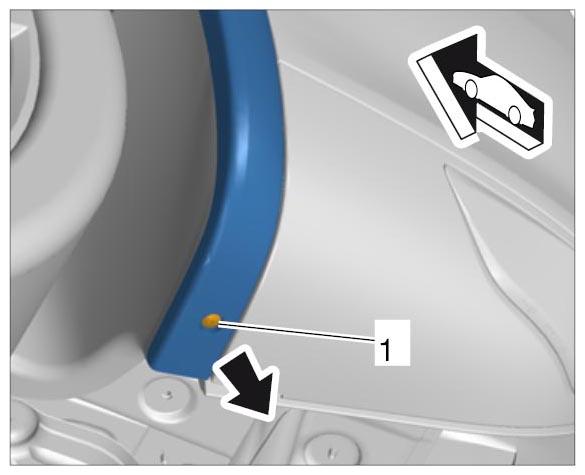

Unscrew lower fastening screw -1- .

Fig 1: Loosening Rear Wheel Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

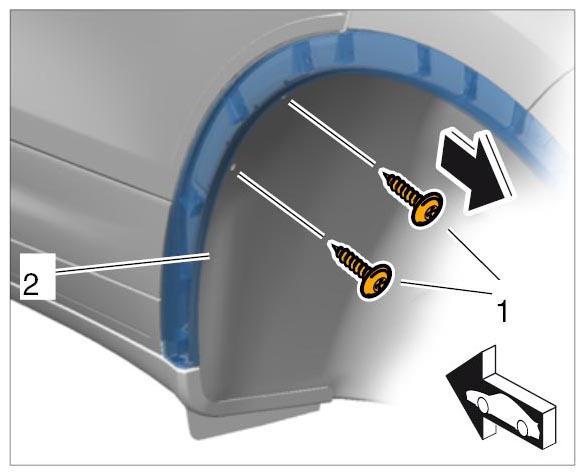

Unscrew fastening screws -1- from the wheel housing liner -2- .

Fig 2: Loosening Wheel Housing Liner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

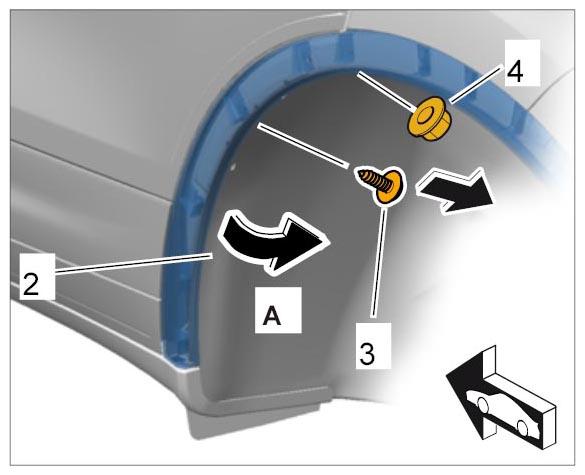

Press the wheel housing liner -2- aside -A- and unscrew the fastening screw -3- and fastening nut -4- from the inside.

Fig 3: Loosening Front Wheel Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

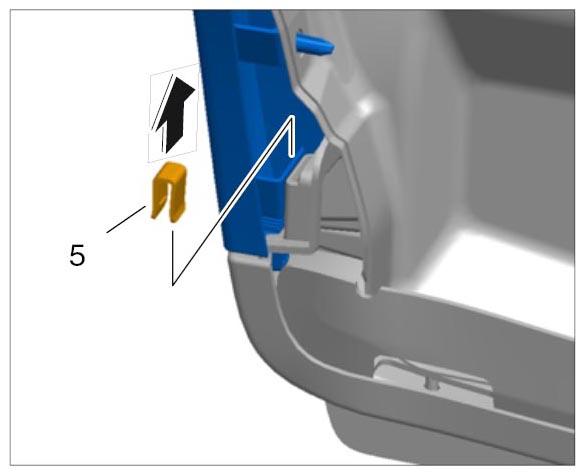

Pull off retaining clip -5- .

Fig 4: Pulling Off Retaining Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove wheel cover.

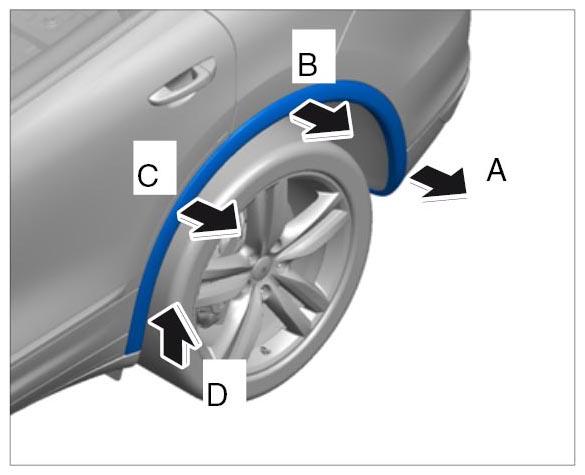

1. 5.1. Unclip wheel cover from the body evenly all the way around using an assembly wedge -arrows A, B and C- .
2. 5.2. Pull the wheel cover up and off -arrow D- .
Fig 5: Removing Wheel Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
