Removing Cover For Centre Underbody

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

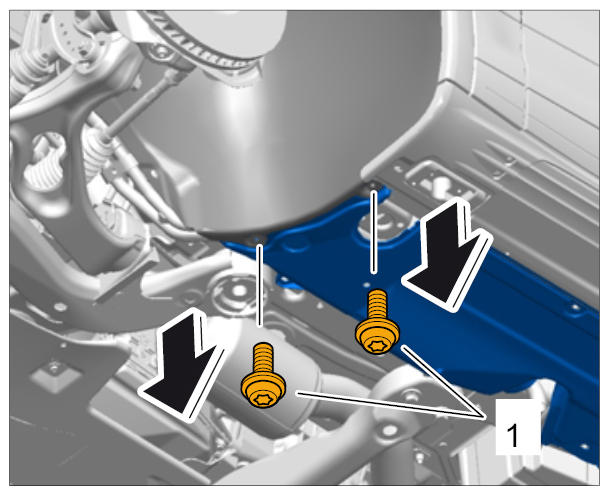

Loosen the rear fastening screws -1- for the front wheel housing liner.

Fig 1: Releasing Front Wheel Housing Liner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

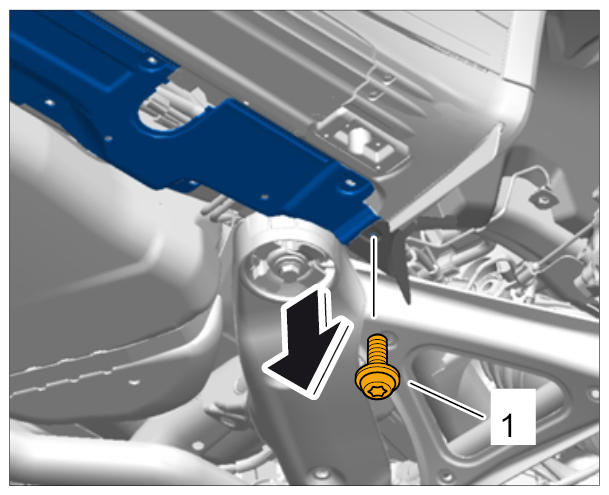

Loosen the front fastening screw -1- for the rear wheel housing liner.

Fig 2: Removing Rear Wheel Housing Liner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

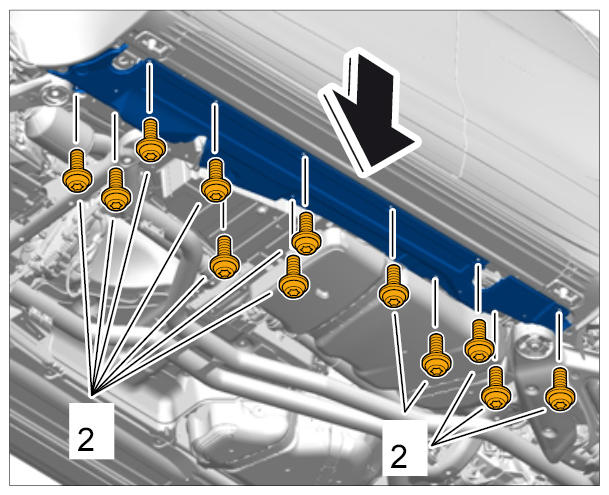

Unscrew fastening screws -2- .

Fig 3: Detaching Centre Underbody Panelling
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove cover for center underbody.
