Removing Front Wheel Cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Detach front wheel housing liner at the wheel arch.
    1. 1.1. Unscrew fastening screws along the wheel arch -1-  .

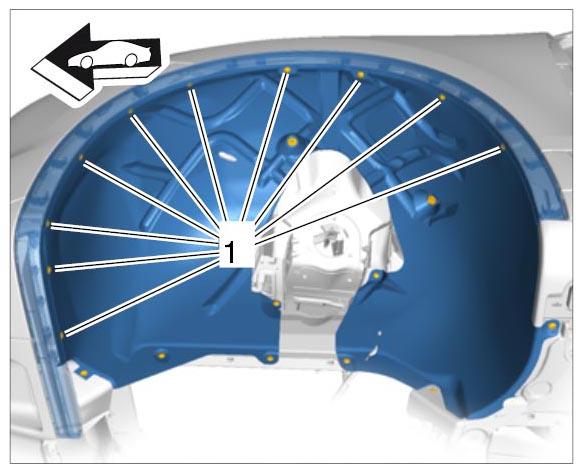

      Fig 1: Loosening Wheel Housing Liner
      G09940164Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Press wheel housing liner aside.
  3. Unscrew fastening screws -1-  at the front for the front apron.

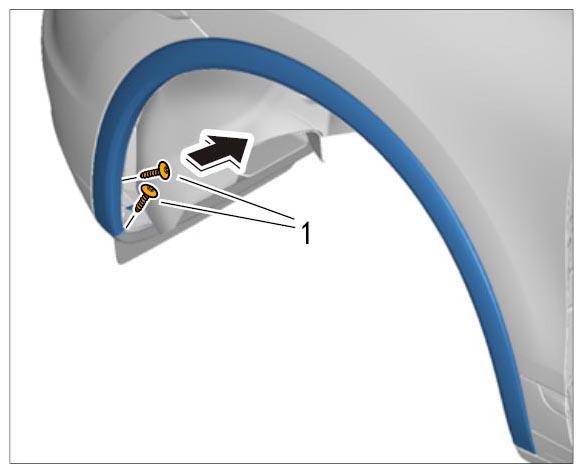

    Fig 2: Removing Front Wheel Cover
    G09940165Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Unscrew fastening screws -2-  on the wing.

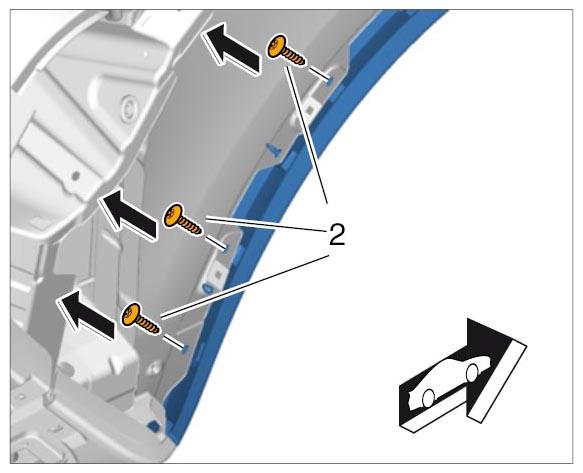

    Fig 3: Removing Rear Wheel Cover
    G09940166Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Pull off retaining clip -3-  .

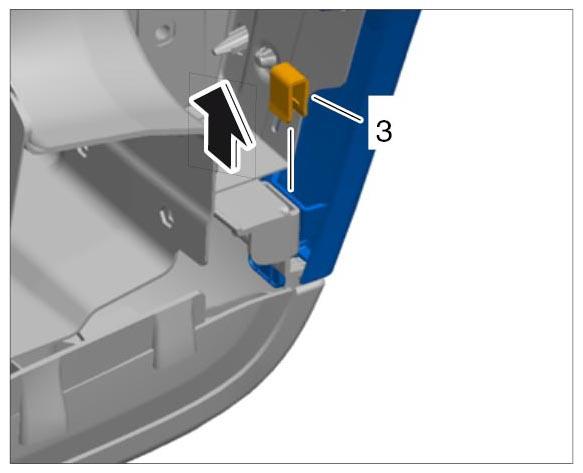

    Fig 4: Pulling Off Retaining Clip
    G09940167Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Remove wheel cover.
    1. 6.1. Unclip the wheel cover from the body evenly all the way around using an assembly wedge -Arrows A, B and C-  .
    2. 6.2. Pull the wheel cover up and off -arrow D-  .

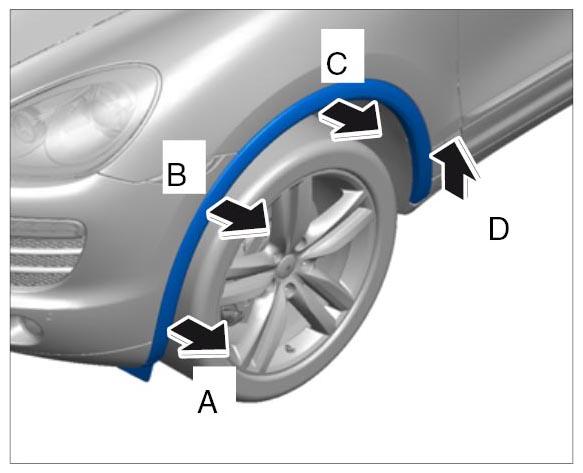

    Fig 5: Removing Wheel Cover
    G09940168Courtesy of PORSCHE CARS NORTH AMERICA, INC.
