Removing Wire Harness For Roll-Over Protection System
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

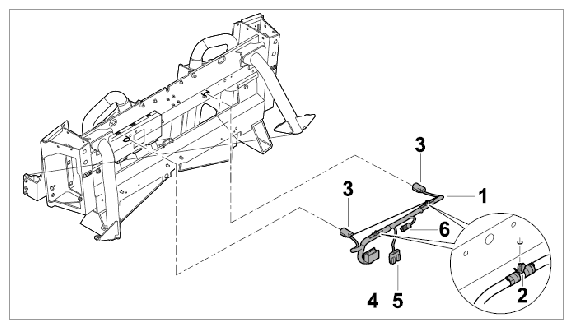

- Wire harness for roll-over protection system
- Retaining clips
- Roll-over bar connector
- Convertible top control unit connector
- Plug connection for wire harness for roll-over protection system to rear wire harness
- Plug connection for motor for convertible-top compartment lid drive mechanism
- Release and pull off connector on the convertible top control unit -4- . → 619619 REMOVING AND INSTALLING CONVERTIBLE TOP CONTROL UNIT - section on "Removing"
- Release and disconnect plug connection for wire harness for roll-over protection system to rear wire harness -5- . → Removing Frame For Roll-Over Protection System - section on "Removing"
- Release and disconnect plug connection for motor for convertible-top compartment lid drive mechanism -6- . → Removing Motor For Convertible-Top Compartment Lid Drive - section on "Removing"
- Unclip and remove wire harness for roll-over protection system -1- at the retaining clips -2- .
