Subsequent Work After Installing Hydraulic Pump

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install the generator on vehicles with manual transmission.
→ 272219 REMOVING AND INSTALLING GENERATOR
Install the oil filler neck on vehicles with manual transmission.
Fit the pulleys -4- and drive belt -1- . Pay attention to rolling direction of previously used belt.
→ 137819 REMOVING AND INSTALLING DRIVE BELT - TURBO

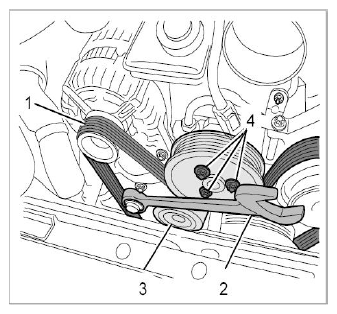

Fig 1: Identifying Pulley, Drive Belt And Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Check once again that the drive belt is positioned correctly on the pulleys.
Fit the throttle housing.
→ 244219 REMOVING AND INSTALLING THROTTLE HOUSING .
Install (Y-shaped) pressure pipe and air cleaner housing.
→ 214119 REMOVING AND INSTALLING PRESSURE PIPE or 214119 REMOVING AND INSTALLING PRESSURE PIPE (GT2 RS) .

→ 242519 REMOVING AND INSTALLING AIR CLEANER HOUSING .
Connect the pressure and return lines to the underbody if necessary -arrows- (if you have not already done so after draining the fluid).
Make sure that the pressure and return lines are not confused and that the connecting couplings lock with an audible click when you connect them.

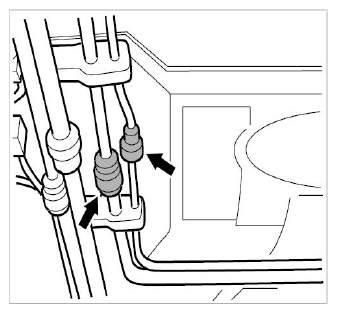

Fig 2: Locating Pressure And Return Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fill hydraulic fluid (Pentosin) into the supply tank, bleed the steering system and check for leaks.
On vehicles with manual transmission, bleed the clutch high-pressure hydraulic system by pressing the clutch pedal many times (approx. 10 times) when the engine is running.

→ 480201 CHECKING THE FLUID LEVEL FOR POWER STEERING .

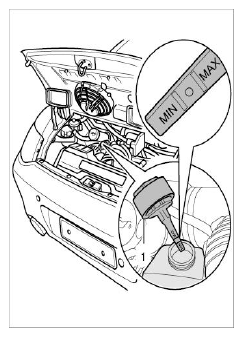

Fig 3: Identifying Position Of Supply Tank - As Of 2010 Model
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove protective covers.
Fit underbody panelling → 519319 REMOVING AND INSTALLING COVER FOR CENTRE UNDERBODY .
