Preliminary work for air guide in luggage compartment

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Depending on which part of the air guide is to be removed, the following preliminary work must be carried out.

The air guide is only installed in connection with I No. 575.

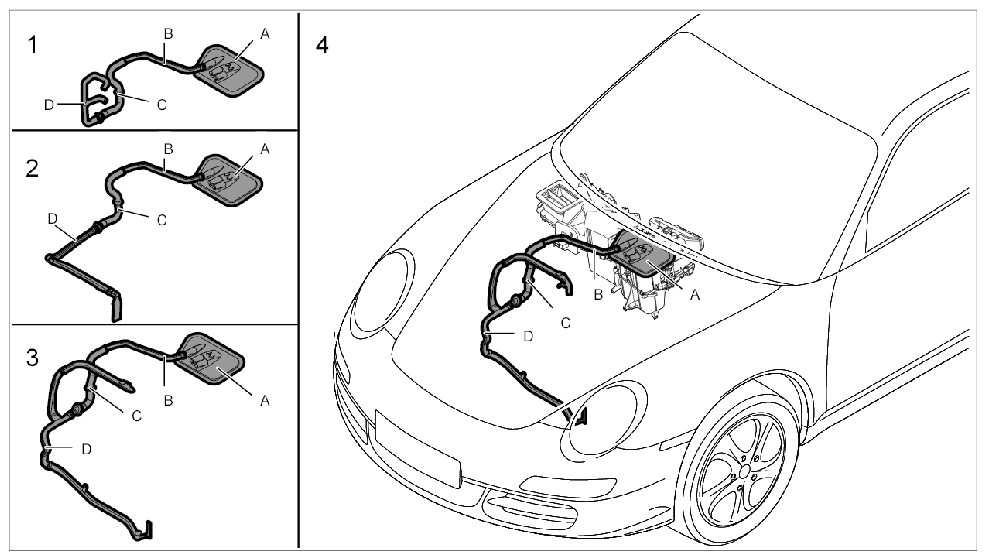

Fig 1: Identifying Installation Position Of Air Guide
G09830225Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. → Removing instrument panel ; → Removing battery coverRemoving battery cover ; → Removing Cover ; → Removing cowl panel cover ; → Removing wiper link
  2. → Removing battery cover ; → Removing Cover ;
  3. → Removing battery cover ; → Removing Cover ; → Removing front luggage compartment cover
  4. → Removing front luggage compartment cover
