Removing wiper link

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew the three fastening screws -3-  for the wiper linkage and release and unplug the electric connector for the wiper motor.

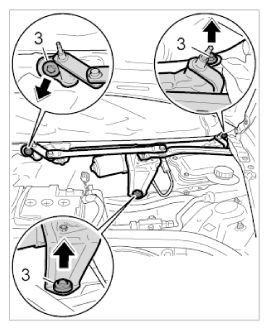

    Fig 1: Removing Fastening Screws
    G09827536Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove wiper linkage. If the wiper motor must be removed from the wiper linkage, then proceed according to "Removing and installing wiper motor"→ Removing wiper motor .
