Removing Cover

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

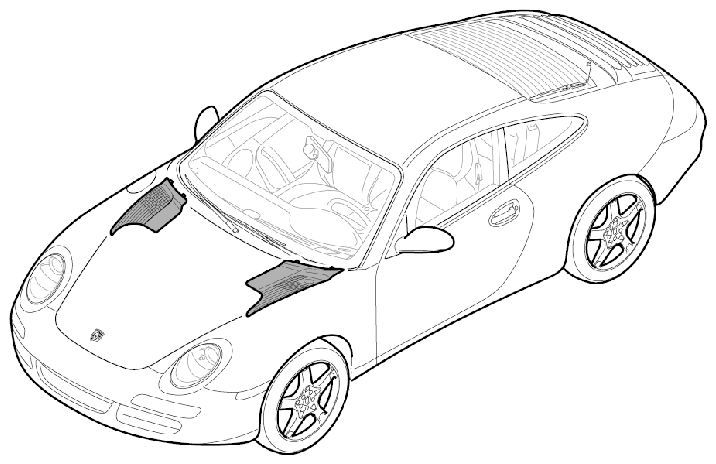

Fig 1: Identifying Installation Position Of Cover
G09830183Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Lift rubber lip of luggage compartment seal to one side, lift up the cover and disengage it from cowl panel cover.

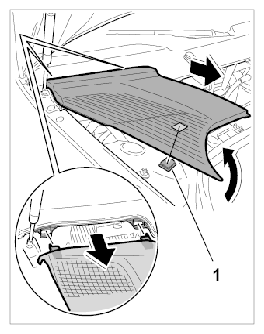

    Fig 2: Lifting Rubber Lip Of Luggage Compartment Seal To One Side
    G09830184Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Check condition of Velcro strip -1-  on the body and on the cover; replace if necessary.
