Replacing Rear Backrest Frame (2/3)

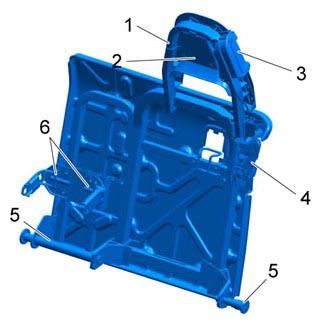

  1. Headrest frame
  2. Foam insert for headrest
  3. Locking mechanism for backrest
  4. Lock for rear-seat backrest
  5. Backrest mount
  6. Armrest bracket
    7. Fig 1: Identifying Rear Backrest Frame Components (2/3)
    G09812665Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unclip headrest frame -1-  towards the rear.
  2. Remove foam insert for headrest -2-  by pulling it forward out of the backrest frame.
  3. Remove locking mechanism -3-  for backrest. → Removing Locking Mechanism For Rear Backrest
  4. Remove lock -4-  for rear-seat backrest. → Removing Lock For Rear-Seat Backrest
  5. Remove backrest mount -5-  . → Removing Mount For Rear Backrest
  6. Unscrew fastening screws on armrest brackets -6-  .
  7. Remove armrest brackets -6-  .
  8. Replace old backrest frame with a new backrest frame.
  9. Position armrest brackets -6-  on the backrest frame.
  10. Screw in fastening screws on armrest brackets -6-  .
  11. Install backrest mount -5-  . → Installing Mount For Rear Backrest
  12. Install lock -4-  for rear-seat backrest. → Installing Lock For Rear-Seat Backrest
  13. Install locking mechanism -3-  for backrest. → Installing Locking Mechanism For Rear Backrest
  14. Insert foam insert for headrest -2-  into the backrest frame.
  15. Clip headrest frame -1-  into the backrest frame from the rear.
