Removing Locking Mechanism For Rear Backrest
- Remove foam part -arrow A-
of the headrest.
- Unclip locking lug on the headrest support -1-
and remove it -arrow B-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

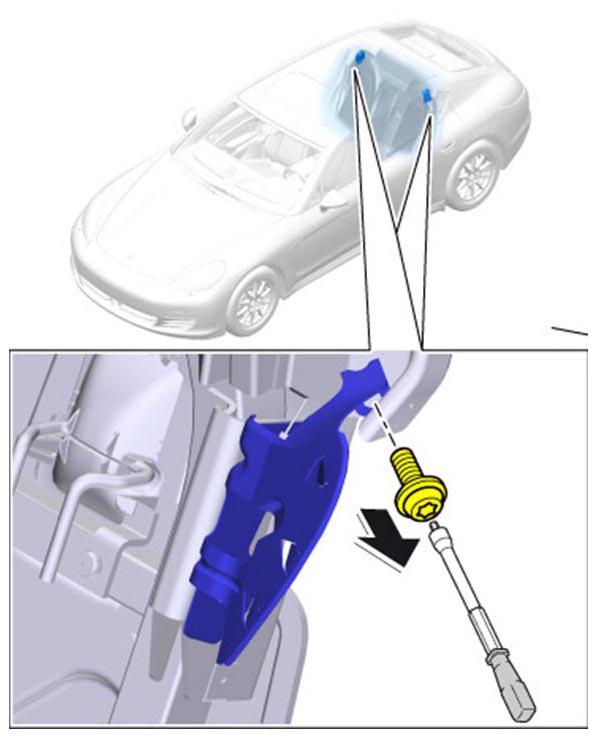

- Unscrew and remove fastening screw on retaining bracket for lock.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

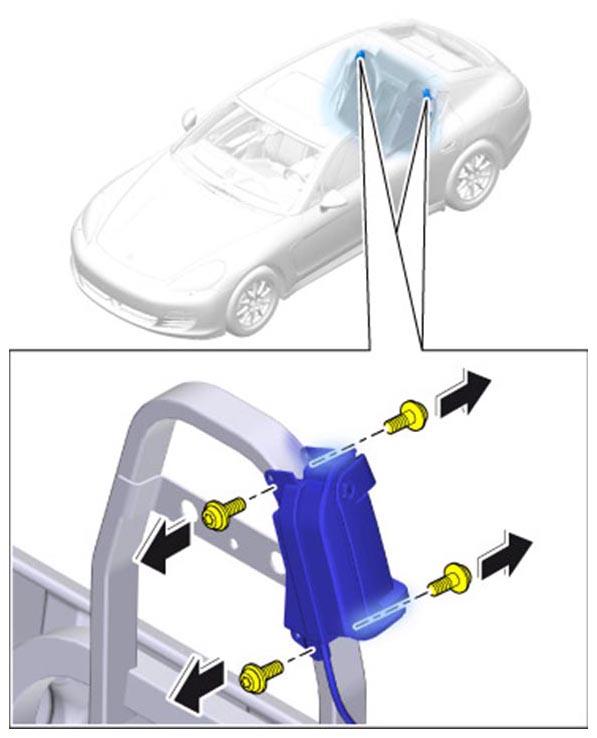

- Unscrew and remove the two front fastening screws on the front locking mechanism.
- Turn the backrest frame and unscrew and remove the two fastening screws on the rear side.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

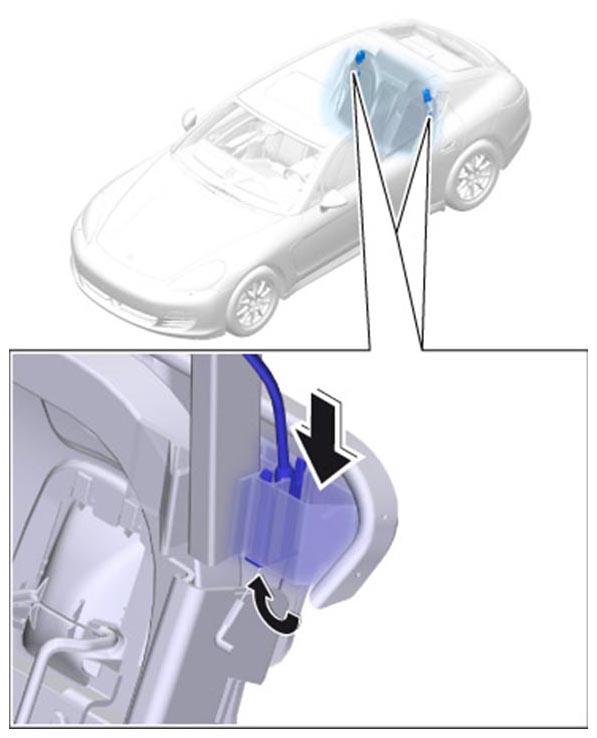

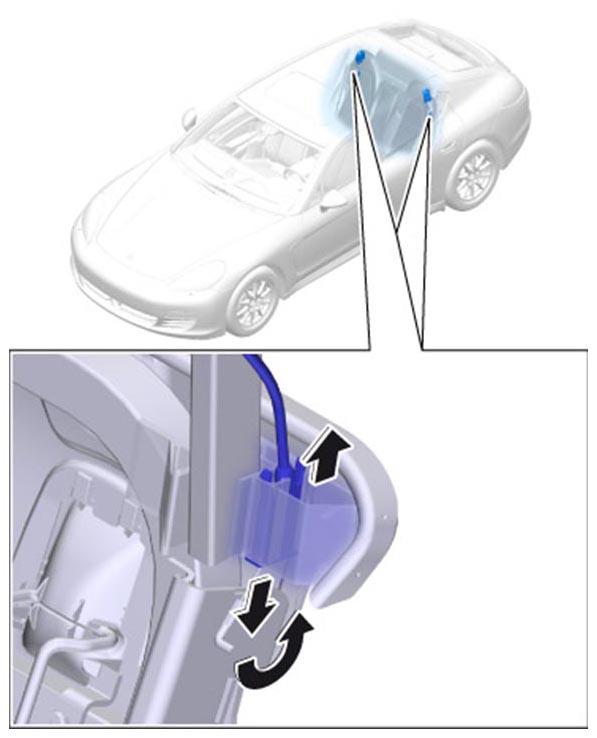

- Release cable holder in a downward direction and remove it by pulling it up through the backrest frame.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Remove complete locking mechanism for rear backrest.
