Removing Lock For Rear-Seat Backrest
- Fold over the backrest.

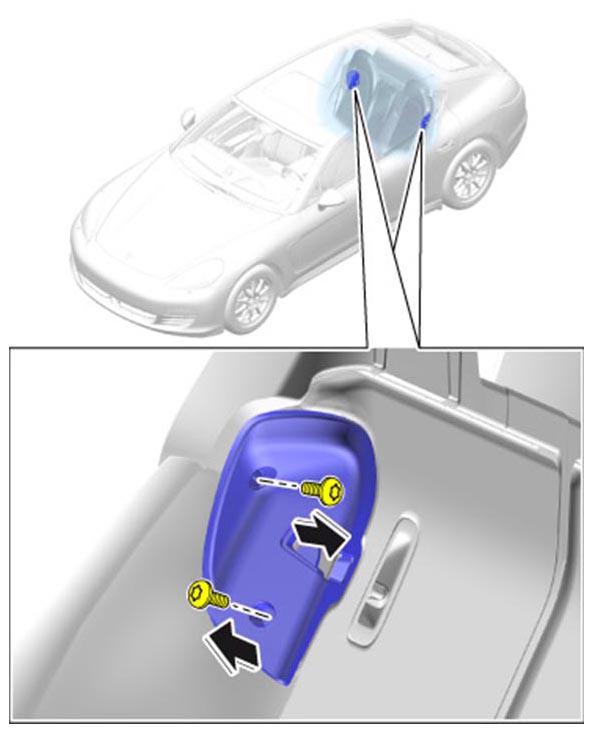

- Unscrew fastening screws on the cover.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

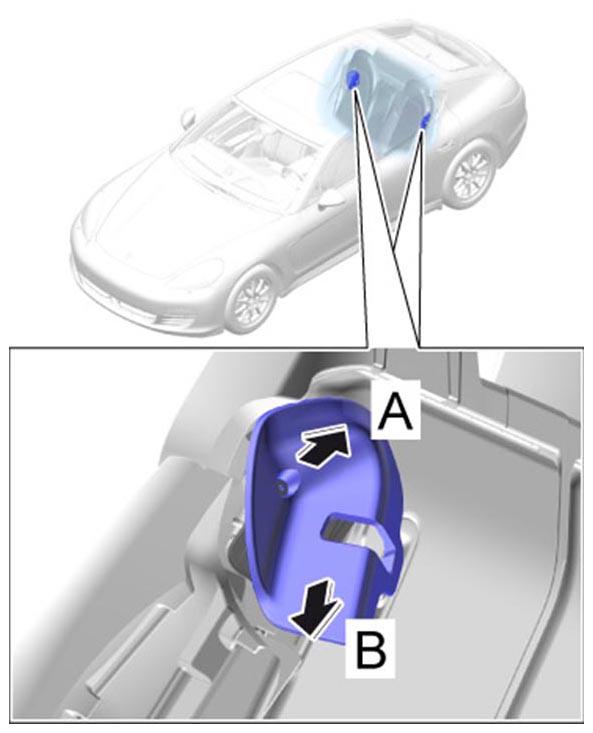

- Disconnect cover -arrow A-
and then remove it by pulling it sideways -arrow B-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

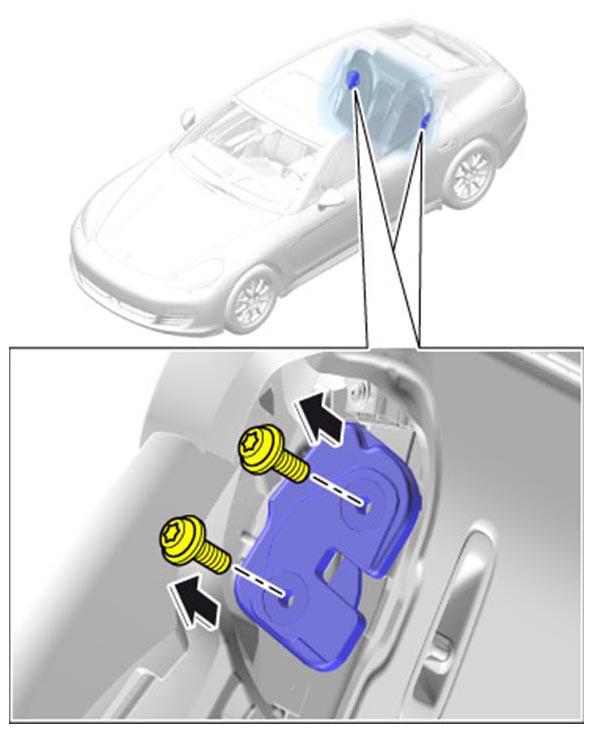

- Unscrew and remove fastening screws on the lock.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

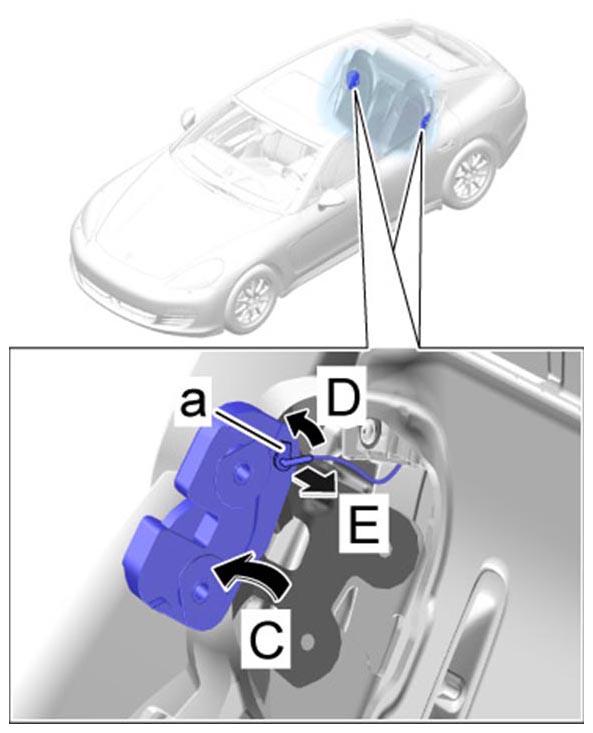

- Release cable -a-
(-arrow D-
) and disconnect it -arrow E-
.
- Remove lock for rear-seat backrest -arrow C-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
