Replacing Rear Axle Housing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

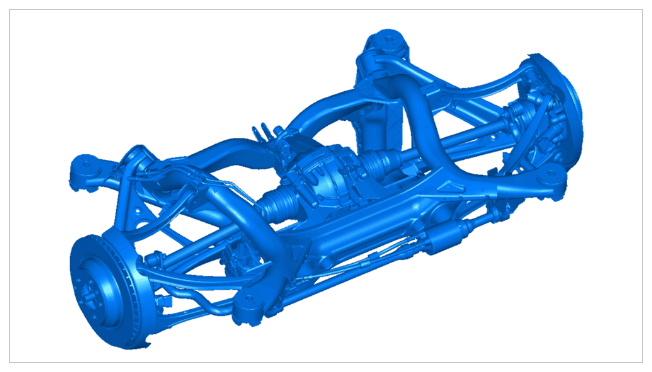

Rear axle housing

Removal:

1. Remove wheel carrier from the rear axle housing.

   > 425219 REMOVING AND INSTALLING WHEEL BEARING HOUSING  - section on "Removing"

2. Remove lower trailing arm at the rear axle housing.

   > 421119 Removing and installing lower trailing arm - section on "REMOVING "

3. Remove rear level sensors from the rear axle housing.

   > 431955 REPLACING REAR LEVEL SENSOR - section on "Removing"

4. Remove rear tie rod from the rear axle housing.

   > 420919 REMOVING AND INSTALLING REAR TIE ROD (TOE CONTROL ARM)  - section on "Removing"

5. Remove anti-roll bar from the rear axle housing.

   > 429019 Removing and installing anti-roll bar - section on "REMOVING "

   ,

   > 429019 REMOVING AND INSTALLING REAR ANTI-ROLL BAR (PDCC)  - section on "Removing"

6. Remove rear final drive from the rear axle housing.

   > 390119 Removing and installing rear final drive - section on "REMOVING "

7. Vehicles with PDCC:

   Unclip the rear PDCC lines from the brackets.

   > 429019 REMOVING AND INSTALLING REAR ANTI-ROLL BAR (PDCC)  - section on "Removing"

8. Vehicles with PDCC:

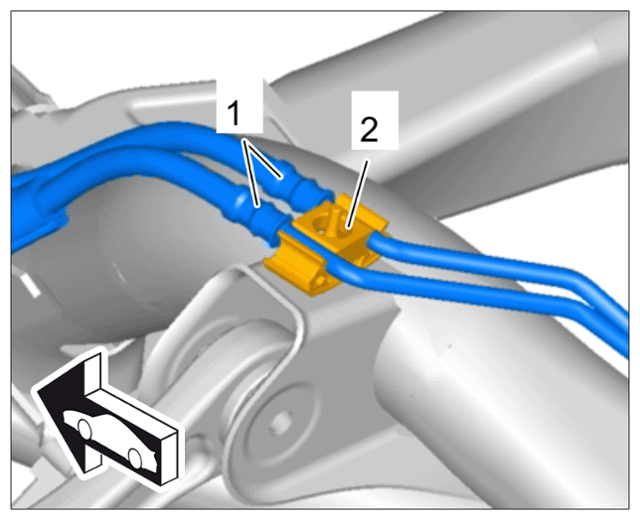

   Unclip the front PDCC lines -1-  from the bracket -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front PDCC lines

9. Vehicles with PDCC:

   Remove valve block from the rear axle housing.

   > 430419 Removing and installing valve block - section on "REMOVING "

   Assembly:

10. Vehicles with PDCC:

    Fit valve block on the rear axle housing.

    > 430419 Removing and installing valve block - section on "INSTALLING "

11. Vehicles with PDCC:

    Clip the front PDCC lines -1-  into the bracket -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front PDCC lines

12. Vehicles with PDCC:

    Clip the rear PDCC lines into the brackets.

    > 429019 REMOVING AND INSTALLING REAR ANTI-ROLL BAR (PDCC)  - section on "Installing"

13. Fit rear final drive on the rear axle housing.

    > 390119 Removing and installing rear final drive - section on "INSTALLING "

14. Fit anti-roll bar on the rear axle housing.

    > 429019 Removing and installing anti-roll bar - section on "INSTALLING "

    ,

    > 429019 REMOVING AND INSTALLING REAR ANTI-ROLL BAR (PDCC)  - section on "Installing"

15. Fit rear tie rod on the rear axle housing.

    > 420919 REMOVING AND INSTALLING REAR TIE ROD (TOE CONTROL ARM)  - section on "Installing"

16. Fit rear level sensors on the rear axle housing.

    > 431955 REPLACING REAR LEVEL SENSOR

17. Fit lower trailing arm at the rear axle housing.

    > 421119 Removing and installing lower trailing arm - section on "INSTALLING "

18. Fit wheel carrier on the rear axle housing.

    > 425219 REMOVING AND INSTALLING WHEEL BEARING HOUSING  - section on "Installing"
