Installing Anti-Roll Bar

Information

The anti-roll bar must be positioned before tightening the fastening screws on the anti-roll-bar mount (= rear-axle support). Highest point on anti-roll bar arm to lower edge of longitudinal member, dimension -Z -  .

Dimension -Z-  . > Control value 96 mm  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

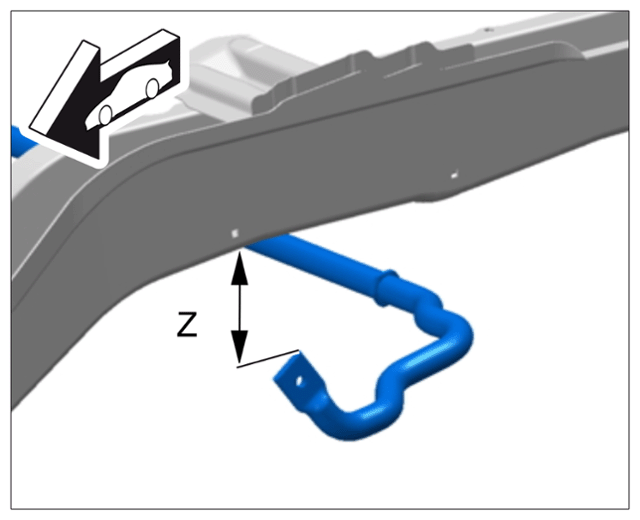

Dimension Z-

This ensures that the position of the anti-roll bar in the support corresponds to the normal vehicle position.

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

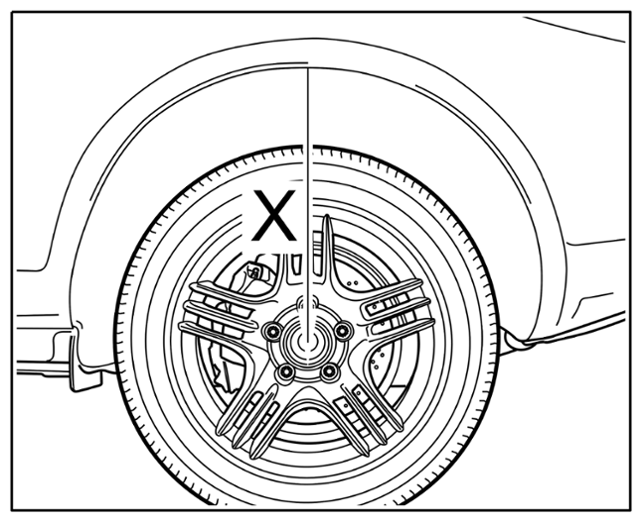

Dimension X - lower edge of wing to centre of axle (shown as an example)

• All screws and bolts on the axle must be tightened in vehicle position. Vehicle position means: vehicle standing on its wheels, or the wheel suspension is raised with a universal vehicle lift. Dimension -X- , from lower edge of wing to centre of axle corresponds to vehicle position. For the current height values, please refer to the adjustment values for suspension alignment

  > WM, 4495TW ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT .

• Visually inspect all parts.
• Replace self-locking nuts.
• Replace all expansion screws (screws fitted using torque angle tightening procedure).
• Use correct tightening torques and torque angle.

  > WM, 4X00IN TIGHTENING TORQUES FOR REAR AXLE

1. Fit the anti-roll bar and insert the four fastening screws evenly in vehicle position and tighten hand-tight.
2. Fit the fastening nuts for the anti-roll bar at the connecting links and tighten hand-tight.
3. Tighten the fastening screws and fastening nuts for the anti-roll bar and connecting links to the specified tightening torques

   > WM, 4X00IN TIGHTENING TORQUES FOR REAR AXLE .
