Removing Trailing Arm

WARNING: This page is about a different variant/trim than selected.

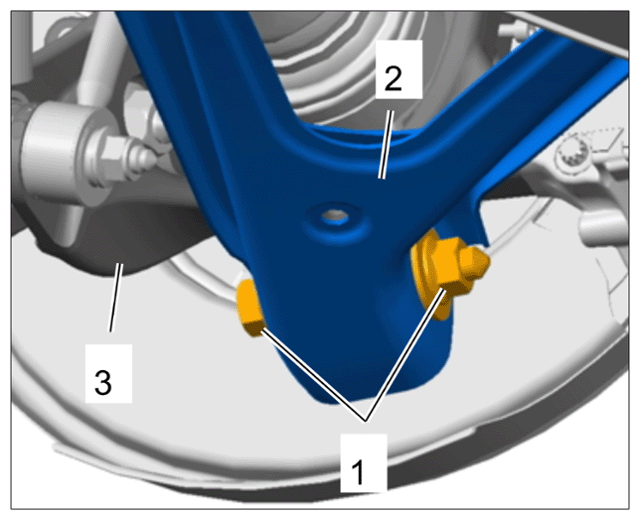

  1. Loosen the threaded joint -1-  for the trailing arm -2-  on the wheel bearing housing -3-  and pull out the screw.
    G16329791Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screw on wheel bearing housing

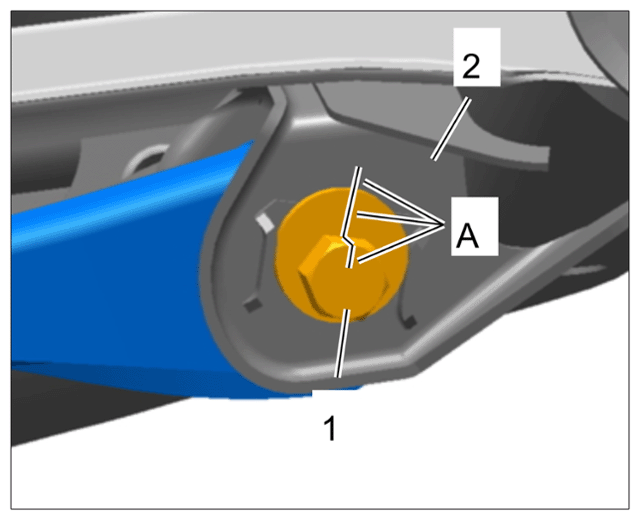

  2. Mark the installation position of the eccentric screw -1-  in the rear axle housing -2-  (-A-  ).
    G16329792Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Marking position of eccentric screw

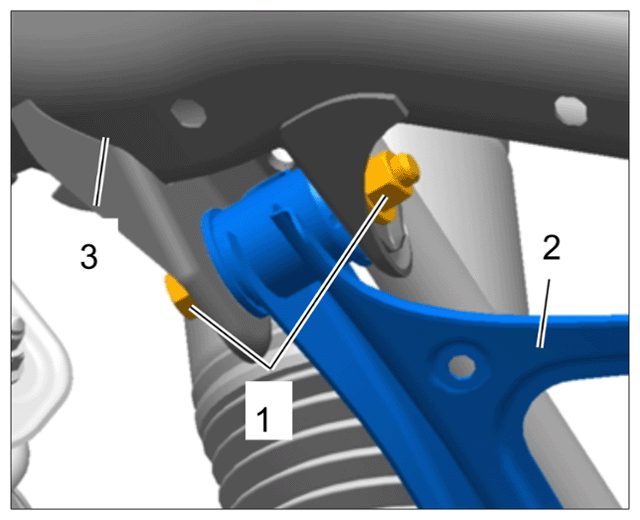

  3. Loosen the eccentric screw -1-  for the trailing arm -2-  and pull it out of the rear axle housing -3-  .
    G16329793Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Eccentric screw for trailing arm

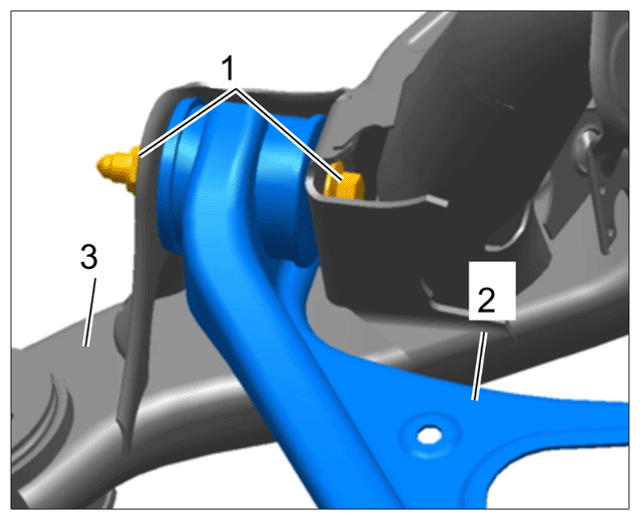

  4. Loosen the fastening screw -1-  for the trailing arm -2-  in the front rear axle housing -3-  and pull it out.
    G16329794Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front fastening screw

  5. Take the trailing arm out of the vehicle.

    Press it out of the guides using a suitable tool if necessary.
