Subsequent Work

→ Support the engine with the prescribed tool.

1. Install lower part of engine carrier.

   → Installing Engine Carrier  .

2. Transmission jack V.A.G 1383 A WE 1082  can now be removed from the work area.
3. Install underbody panels at the rear and center.

   → Installing cover for center underbody .

   → Installing cover for rear underbody .

4. Fit spark plugs.

   → Installing Spark Plugs .

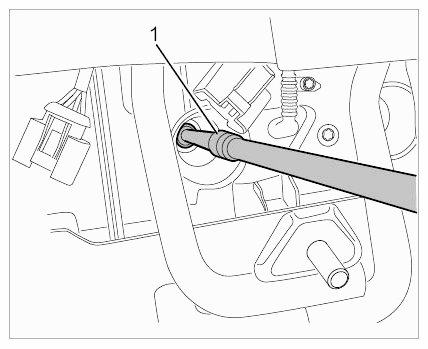

   Fig 1: Installing Spark Plug

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Install bar ignition modules.

   → Installing Ignition Coils .

   → Tightening torque: 10 Nm (7.5 ftlb.)

6. Install upper part of heat shield.

   → Installing Upper Part Of Heat Shield .

   1. 6.1. Fit and tighten two external Torx screws (E10, M6 x 12).

      → Tightening torque: 10 Nm (7.5 ftlb.)

7. Mount rear wheels.

   Socket-wrench insert P300  should be used to avoid damaging the rims.

   → Installing wheel .

8. Install rear wall cover.

   → 555919 REMOVING AND INSTALLING REAR WALL COVER .
