Removing passenger's airbag unit

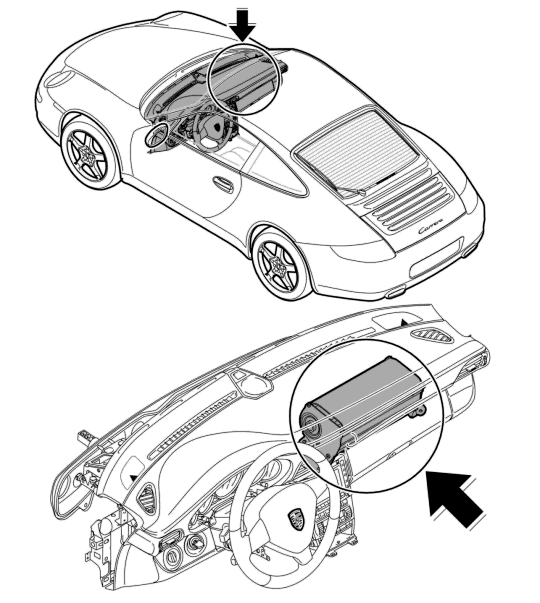

Fig 1: Installation location illustrated on 997

Courtesy of PORSCHE OF NORTH AMERICA, INC.

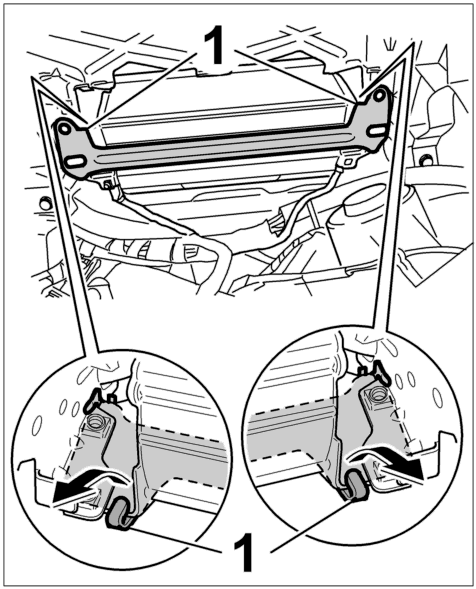

Fig 2: Bend up the reinforcing panel.

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Bend up the curved metal straps -1- at the right and left of the reinforcing panel with a screwdriver. See Fig 2.

WARNING: Incorrect triggering of airbag module.

Danger of injury and damage to property as a result of incorrect handling of airbag units!

→ The safety regulations → 69 AW Safety regulations for airbag and belt tensioner units - as of MY 2005 (All Models) must be followed.

→ The airbag unit must always be stowed so that the airbag opening faces upwards!

→ If removed for an extended period, the airbag unit must be kept in a locked place!

→ Remove ignition key. Disconnect battery. Route or isolate ground strap so that all contact with a ground carrier (e. g. body, seat frame) is avoided.

→ After the battery is disconnected, always wait for 1 minute before disconnecting the airbag plugs.

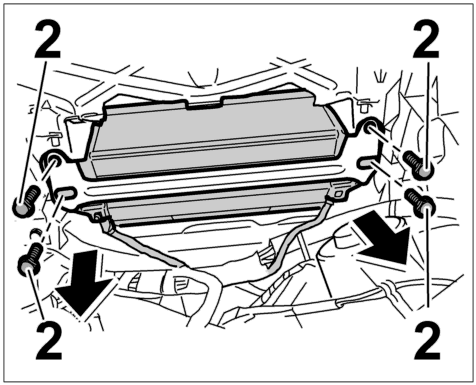

Fig 3: Screws for airbag unit

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Unscrew the four fastening screws -2- for the airbag unit and carefully lower the airbag unit out a few centimeters. See Fig 3.

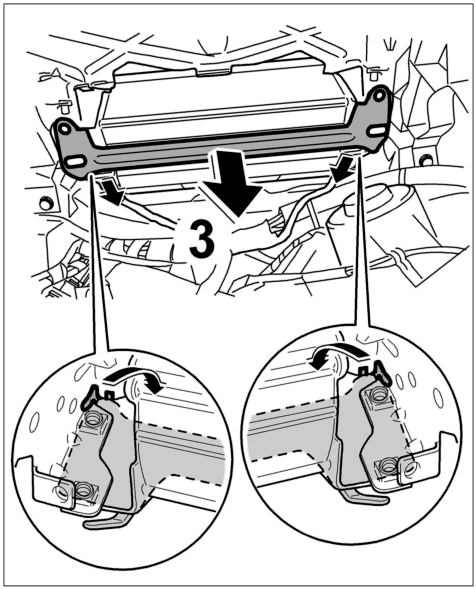

Fig 4: Removing the reinforcing panel

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Push the reinforcing panel -3- back so that it rests on the airbag unit and carefully lower the airbag unit out a few centimeters. See Fig 4.

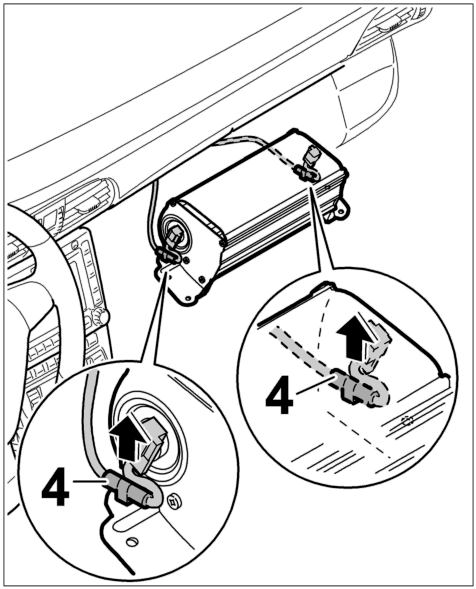

Fig 5: Connection of electric plugs

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Unclip the electrical leads -4- to the left and right of the airbag unit. See Fig 5.

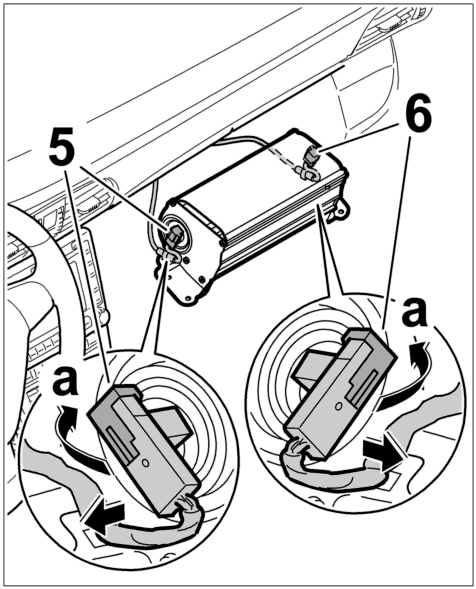

Fig 6: Unfastening the plugs for the airbag

Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. Carefully prise out the locking unit -5- and -6- the electrical plugs to the left and right with a screwdriver -a- and then pull the plugs out of the airbag unit. See Fig 6.

6. Remove airbag unit and lay to one side in the appropriate manner.
