Transmission Control Replacement (Solstice)

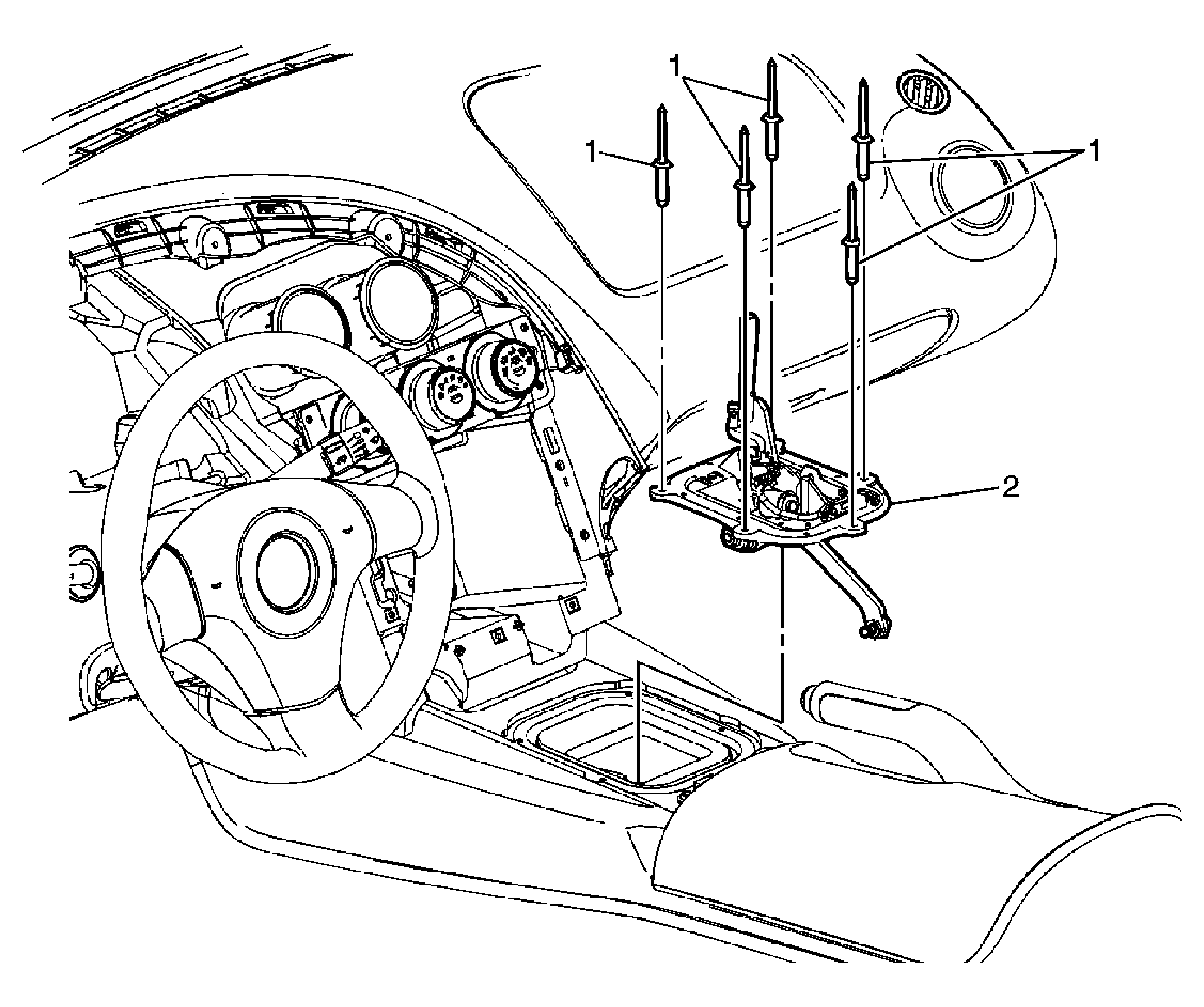

Fig 1: Identifying Transmission Control (Solstice)

GM1718044

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedures

Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
Disconnect the shift linkage from the shift control. Refer to Shift Control Linkage Replacement .
Lower the vehicle.
Remove the shift indicator and shift knob assembly. Refer to Transmission Control Lever Knob Replacement (SKY) or Transmission Control Lever Knob Replacement (Solstice) .
Remove the instrument panel center support bracket. Refer to Instrument Panel Center Support Bracket Replacement (SKY) or Instrument Panel Center Support Bracket Replacement (Solstice) .

1

Shift Control Rivet (Qty: 5).

2

Shift Control
