Instrument Panel Center Support Bracket Replacement (SKY)

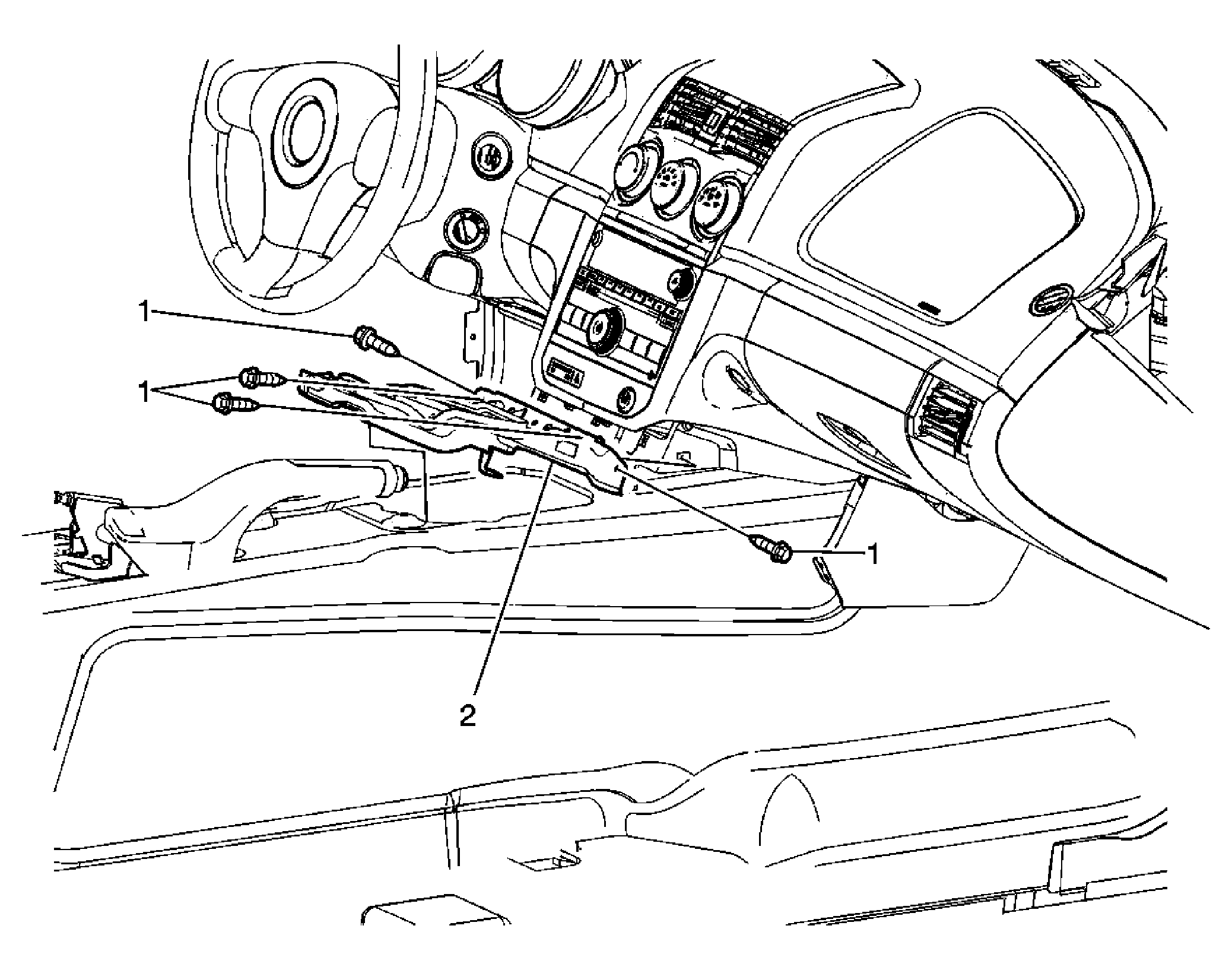

Fig 1: Identifying Instrument Panel Center Support Bracket (SKY)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the front floor lower console assembly. Refer to Front Floor Lower Console Replacement .
1	Instrument Panel (I/P) Center Support Bracket Bolt/Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten:  2 N.m (18 lb in)
2	I/P Center Support Bracket Assembly
