Instrument Panel Center Support Bracket Replacement (Solstice)

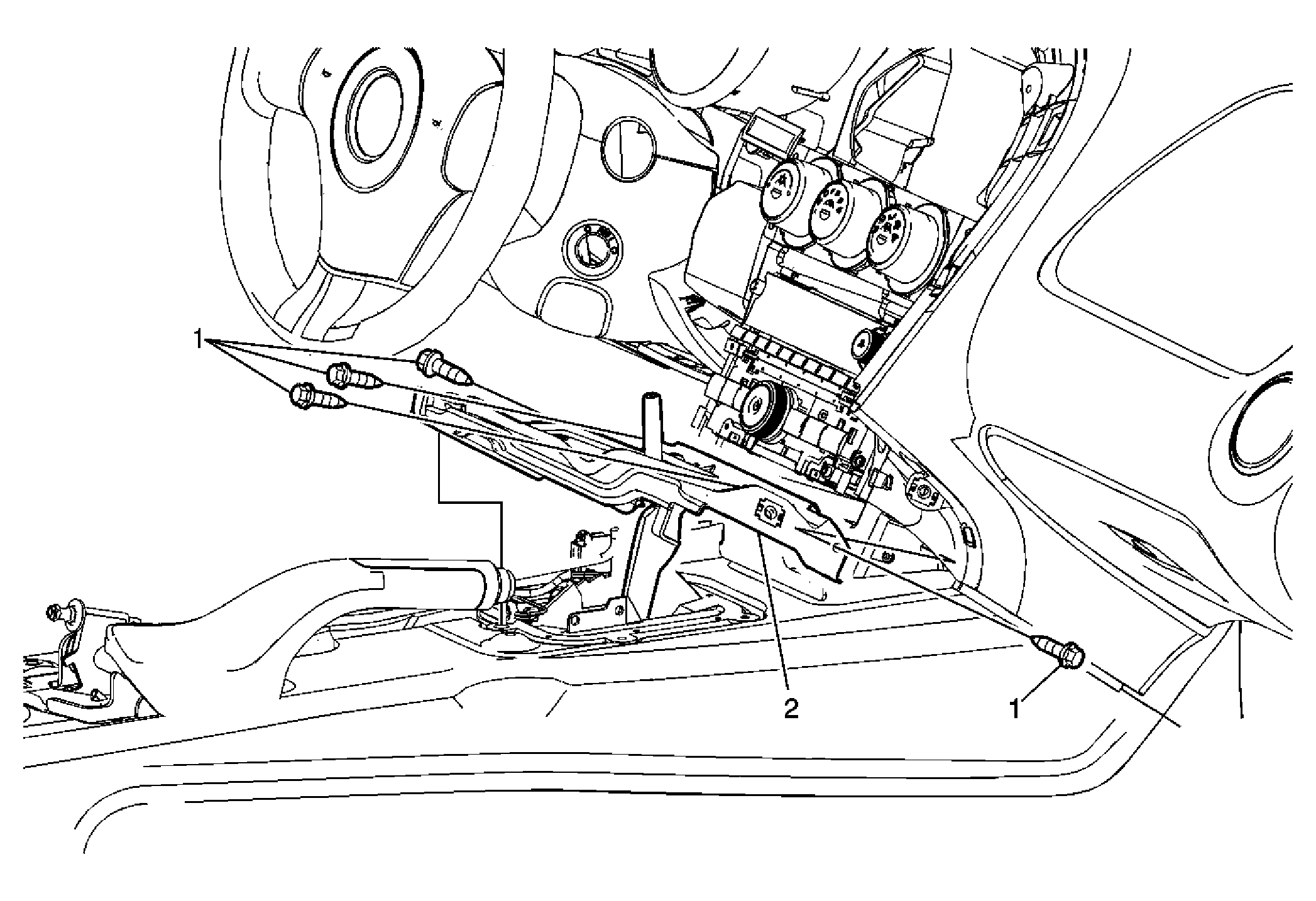

Fig 1: Identifying Instrument Panel Center Support Bracket (Solstice)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the instrument panel (I/P) extension trim plate. Refer to Instrument Panel Extension Trim Plate Replacement .
1	I/P Center Support Bracket Bolt/Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten:  2 N.m (18 lb in)
2	I/P Center Support Bracket Assembly
