Rear Seat Heater Control Module Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

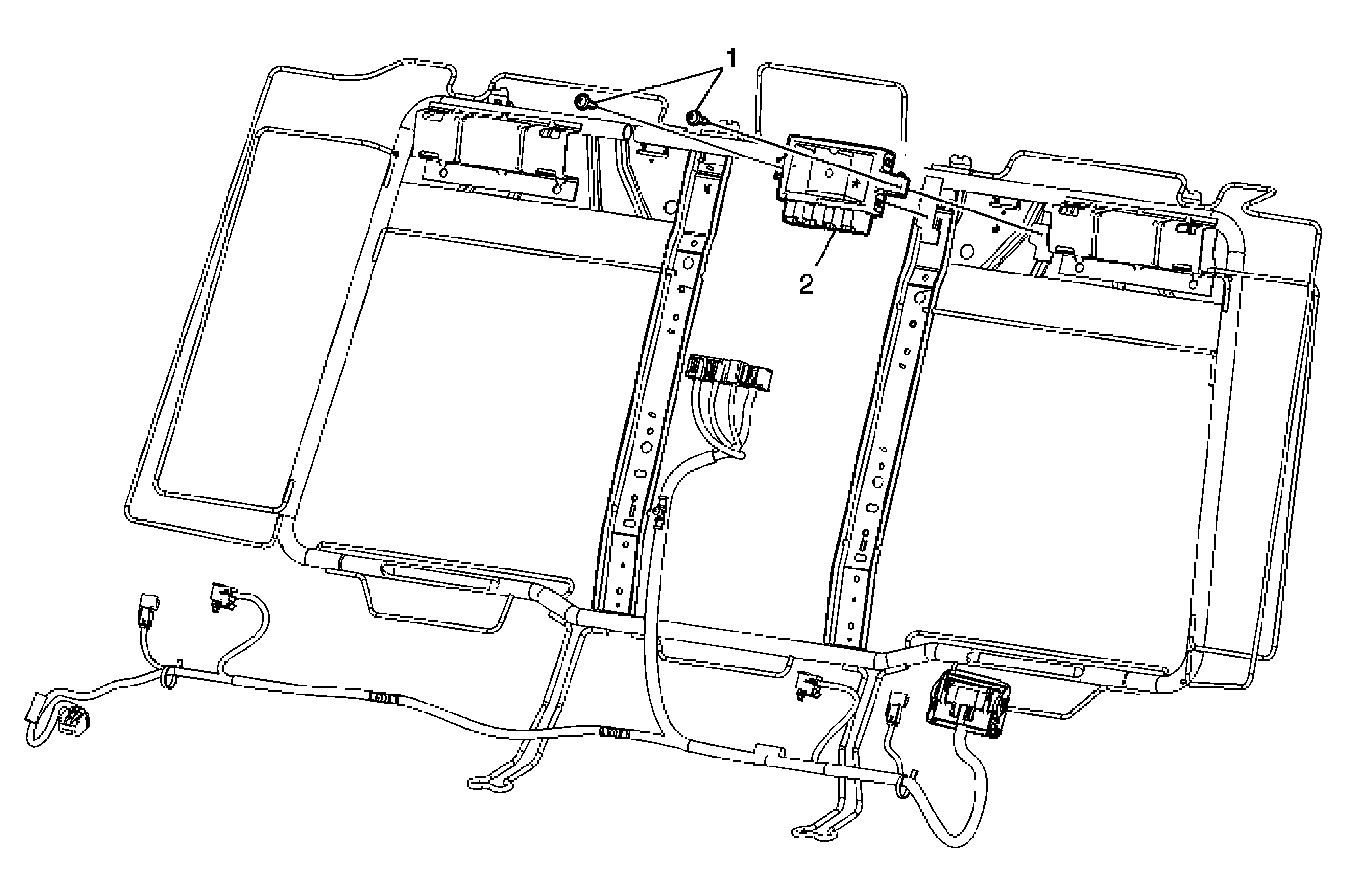

Fig 1: View of Rear Seat Heater Control Module
GM1571694Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Replacement .
  2. Remove the rear seat armrest. Refer to Rear Seat Armrest Replacement .
  3. Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement .
1 Rear Seat Heater Control Module Screws (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten:  2 N.m (18 lb in)
2 Rear Seat Heater Control Module

Procedure

  1. Disconnect the electrical connector.
  2. Refer to Control Module References for replacement and setup information.
