Front Side Door Window Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

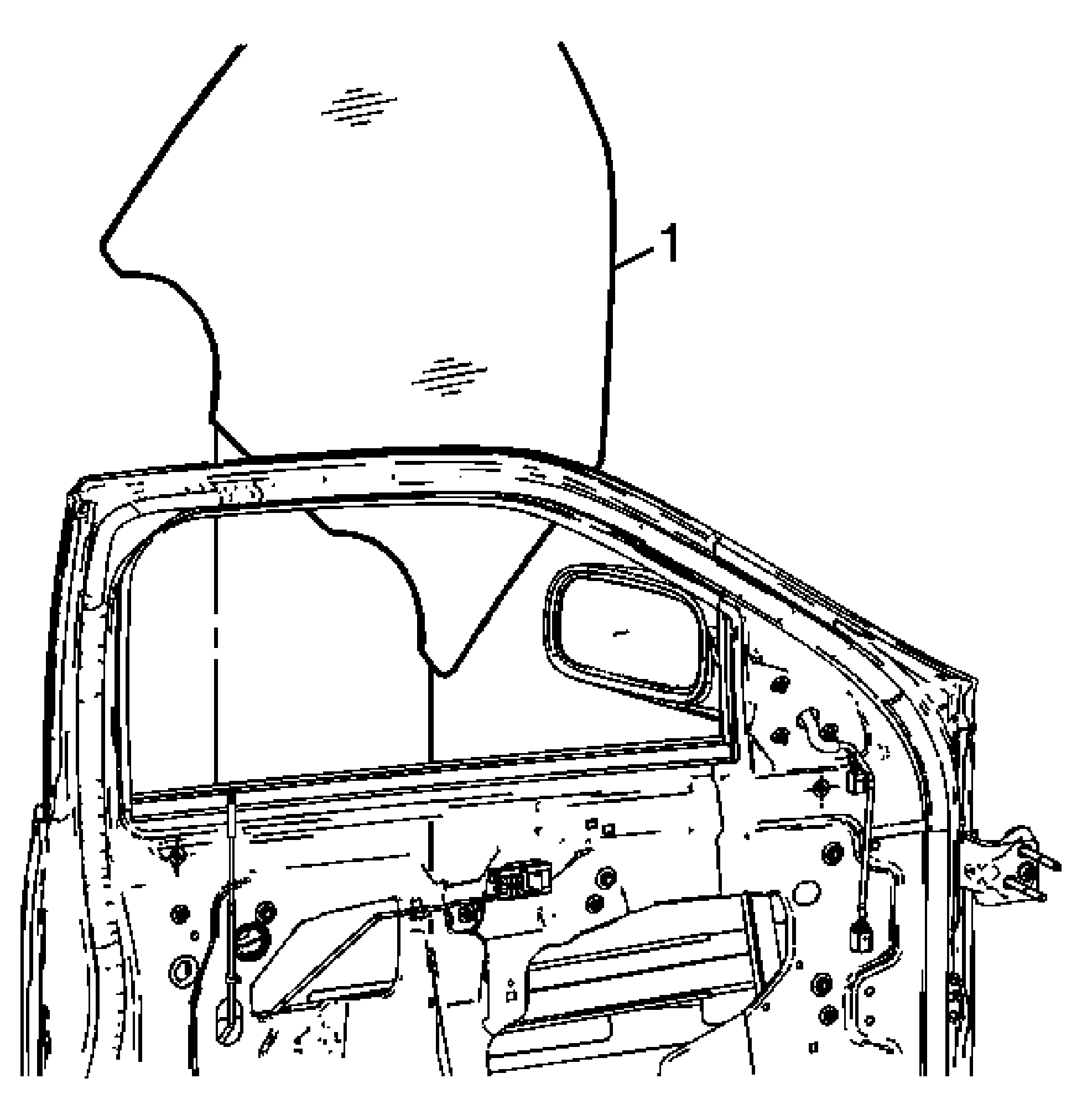

Fig 1: Window Replacement - Front Door
GM1583267Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .

Preliminary Procedures

  1. Position the front side door window approximately half way down in the door.
  2. Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement .
  3. Remove the front door water deflector. Refer to Front Side Door Water Deflector Replacement .
  4. Remove the front side door inner belt sealing strip. Refer to Front Side Door Window Belt Inner Sealing Strip Replacement .
  5. Remove the front window garnish molding. Refer to Front Side Door Opening Frame Garnish Molding Replacement .
  6. Tape the window to the door frame to prevent it from moving.
  7. Remove the front door window regulator. Refer to Front Side Door Window Regulator Replacement .
1 Window, Front Door
Tip:
  1. Remove the tape securing the window and lower it into the door until it is free from the front and rear run channel.
  2. Rotate the front door window as necessary to remove it from the door.
