Front Side Door Window Regulator Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

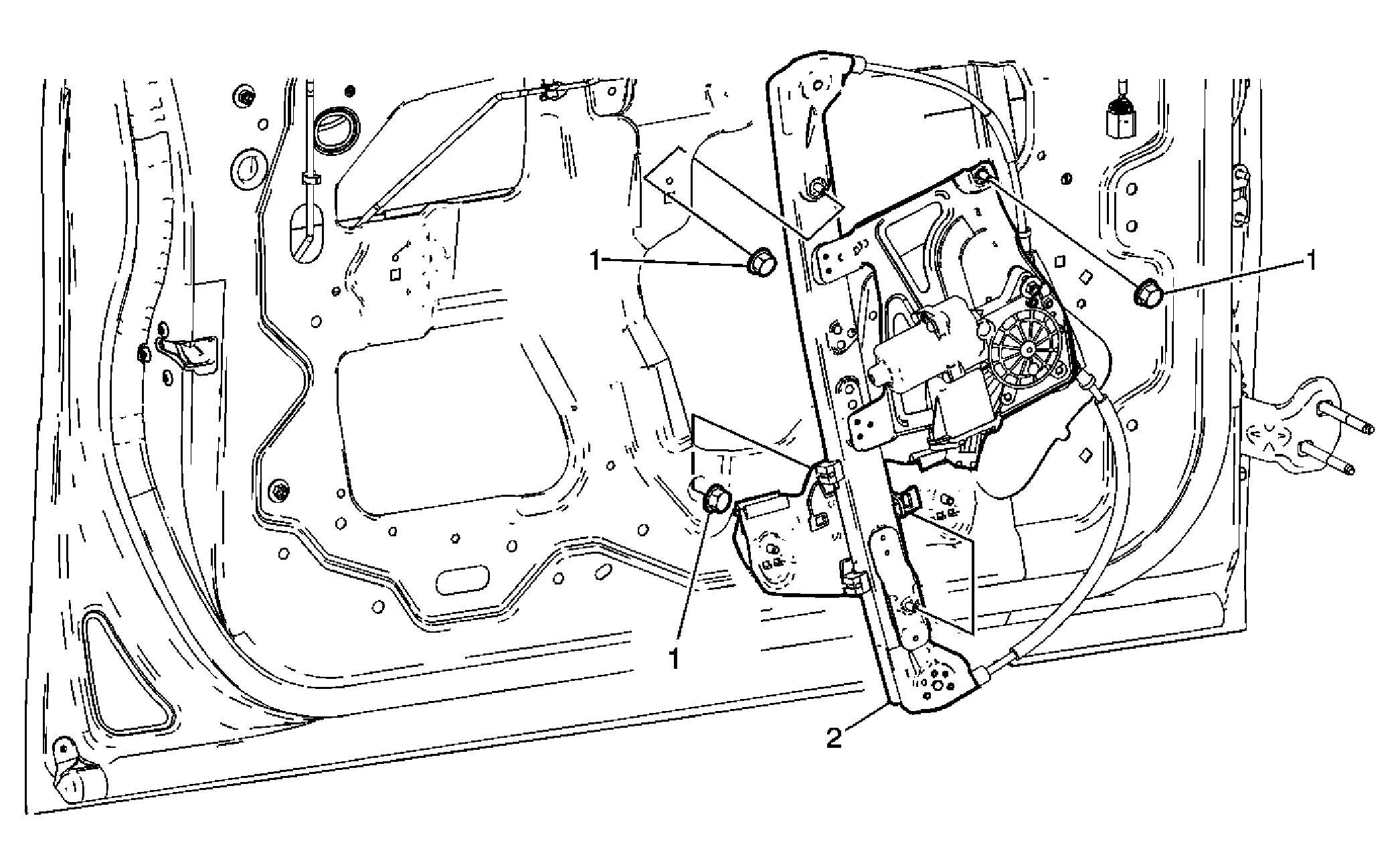

Fig 1: Window Regulator Replacement - Front Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Position window approximately half way down in the door. Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement . Remove the water deflector. Refer to Front Side Door Water Deflector Replacement . Tape the window to door frame to prevent it from moving.
1	Front Side Door Window Regulator to Door Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tip: Loosen the window to regulator clamp bolts (Qty: 2). Release the window regulator from the window and door. Tighten: 9 N.m (80 lb in)
2	Front Door Window Regulator Tip: Disconnect window regulator electrical connector.

Callout

Component Name

Preliminary Procedures

Position window approximately half way down in the door.
Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement .
Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
Tape the window to door frame to prevent it from moving.

Front Side Door Window Regulator to Door Nut (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tip:

Loosen the window to regulator clamp bolts (Qty: 2).
Release the window regulator from the window and door.

Tighten: 9 N.m (80 lb in)

Front Door Window Regulator
Tip: Disconnect window regulator electrical connector.
