Front Side Door Water Deflector Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

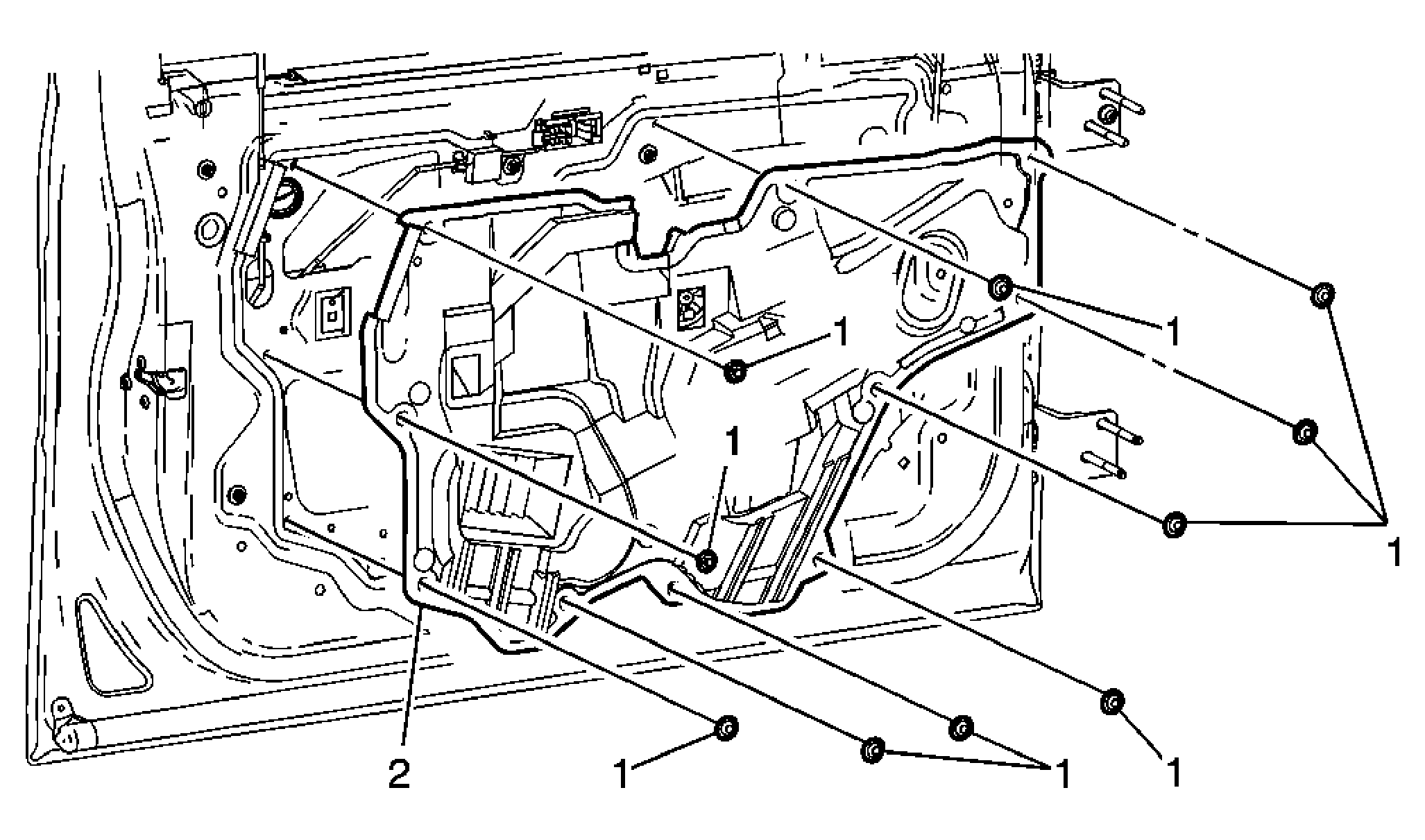

Fig 1: Water Deflector Replacement - Front Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Retainer, Front Door Water Deflector (Qty: 10) Tip: Press the center pin inward to release the retainer.
2	Deflector, Water Tip: Pull the water deflector from the door. Guide electrical connectors through the water deflector while removing it from the door.
