Front Side Door Opening Frame Garnish Molding Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

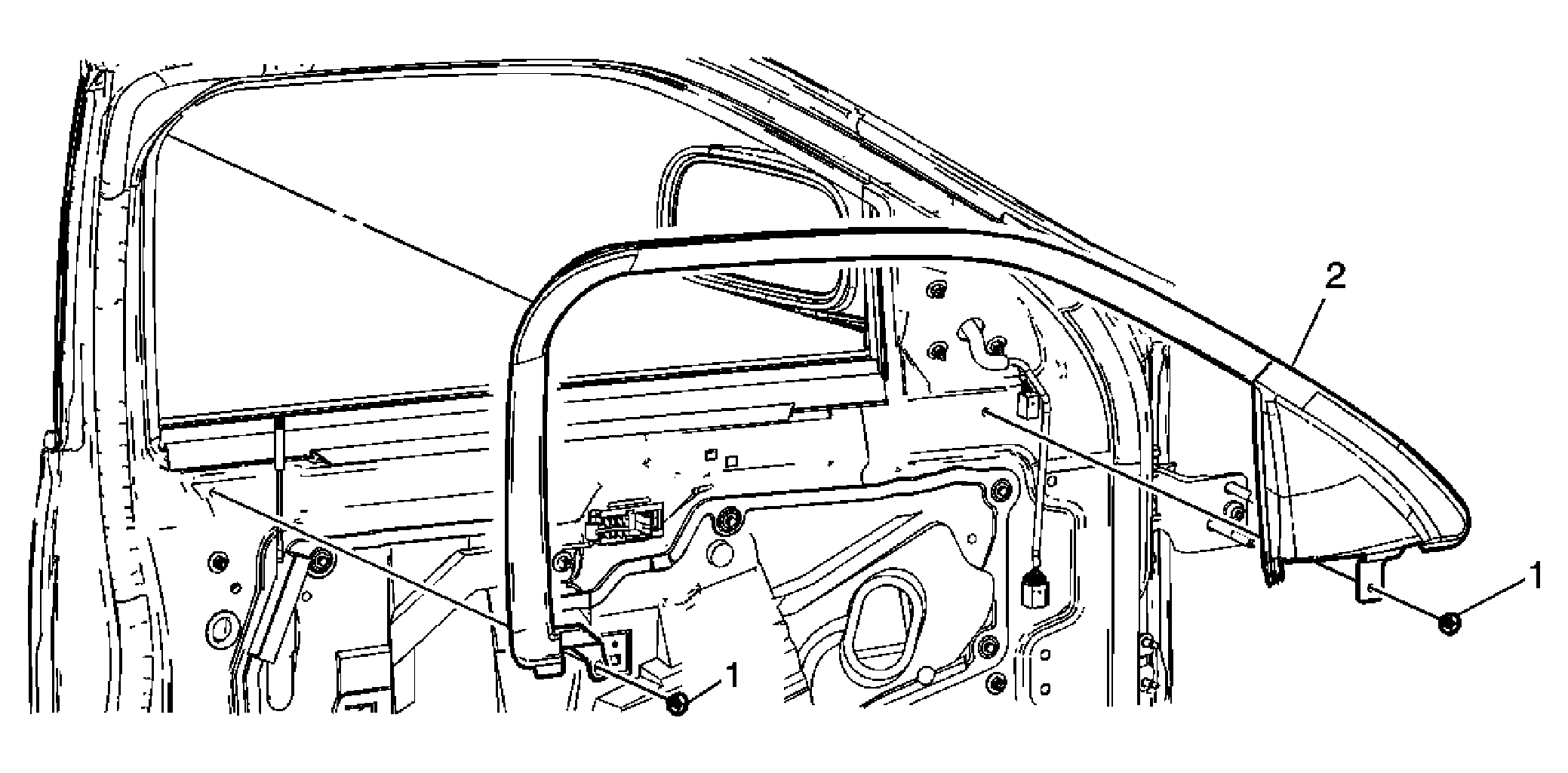

Fig 1: Garnish Molding Replacement - Front Door Frame

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Retainer, Front Door Frame Garnish Molding (Qty: 2) Tip: Use a plastic flat-bladed tool to remove the push-in retainers.
2	Garnish Molding, Front Door Window Frame Tip: Pull the garnish molding from the window flange.
