Instrument Panel Upper Trim Pad Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

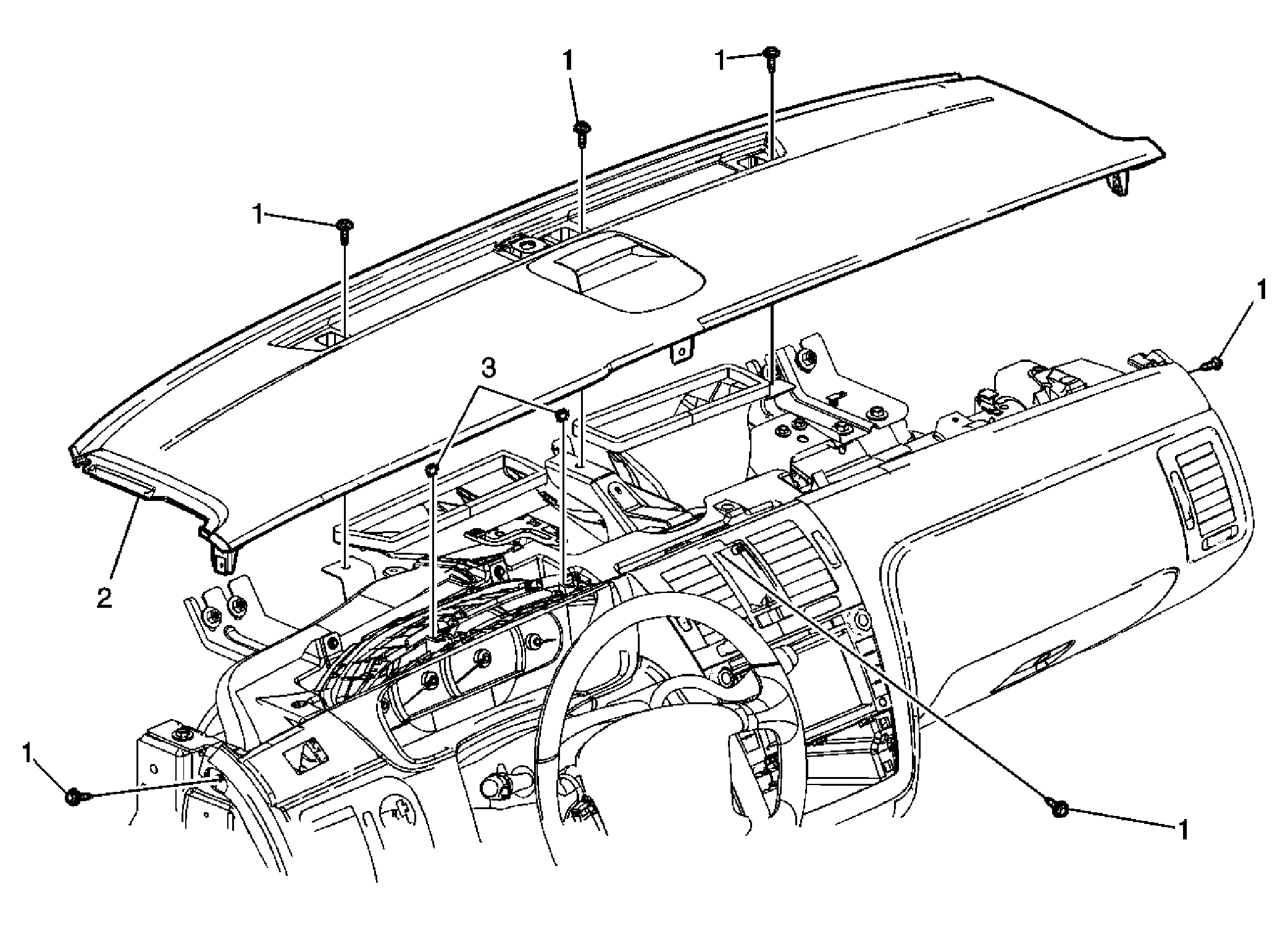

Fig 1: Trim Pad - Instrument Panel (I/P) Upper

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the left instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement - Left Side . Remove the right instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement - Right Side . Remover the defroster grille. Refer to Defroster Grille Replacement . Remove the windshield garnish molding. Refer to Windshield Pillar Garnish Molding Replacement . Remove the instrument panel center trim plate. Refer to Instrument Panel Center Trim Panel Replacement . Remove the instrument panel center air outlet assembly. Refer to Instrument Panel Center Air Outlet Replacement .
1	Instrument Panel Upper Trim Pad Bolts (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten: 9 N.m (80 lb in)
2	Instrument Panel Upper Trim Pad Assembly Tip: Disconnect the electrical connectors.
3	Retainer Clips (Qty: 2)
