Instrument Panel Center Air Outlet Replacement
WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

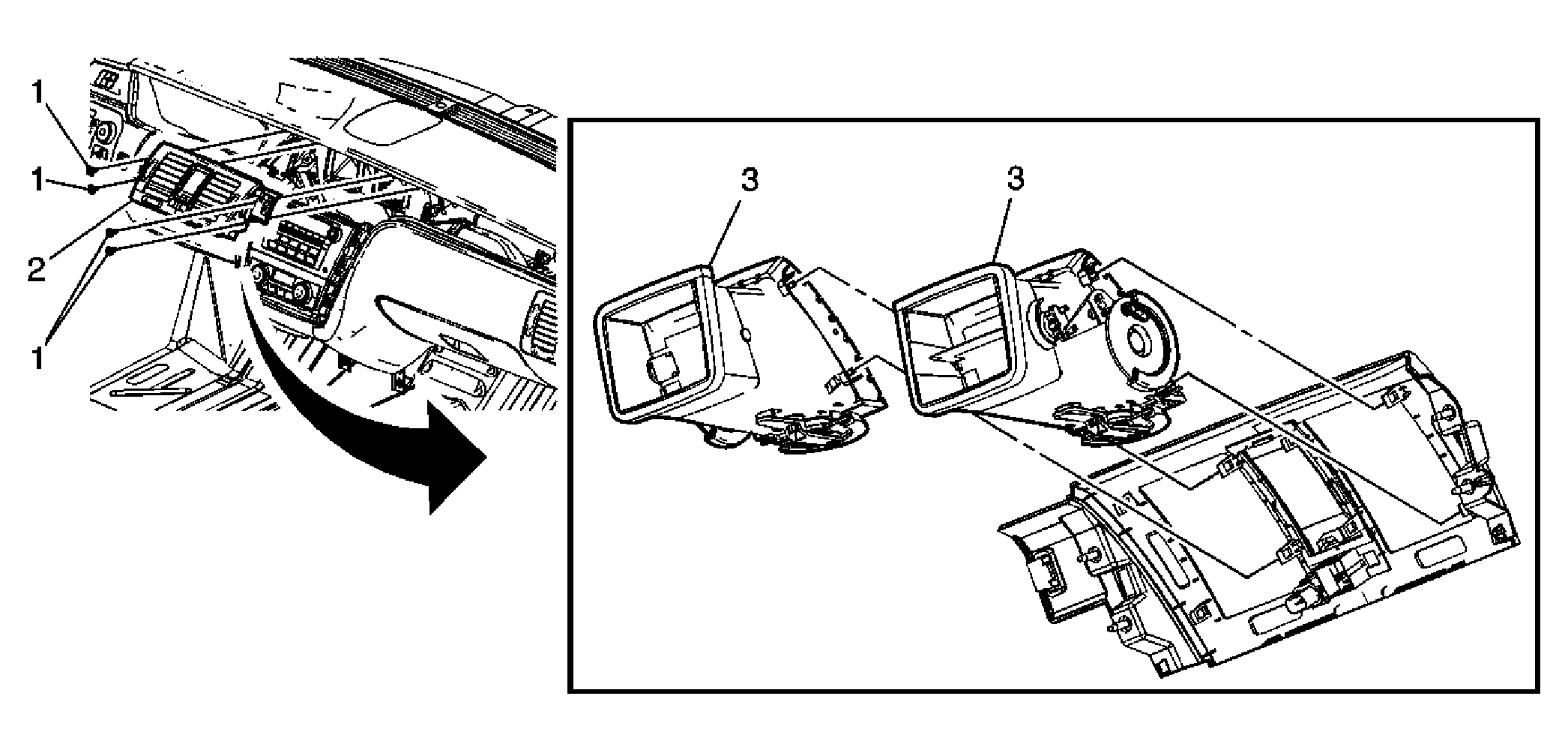

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the instrument panel (I/P) center trim panel. Refer to Instrument Panel Center Air Outlet Replacement . |
|
| 1 | Instrument Panel Center Air Outlet Housing Assembly Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 2 | Instrument Panel Center Air Outlet Housing Assembly |
| 3 | Instrument Panel Center Air Outlet Tip: Using a flat-bladed tool release, the center outlet from the housing assembly. |
