Instrument Panel Center Trim Panel Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

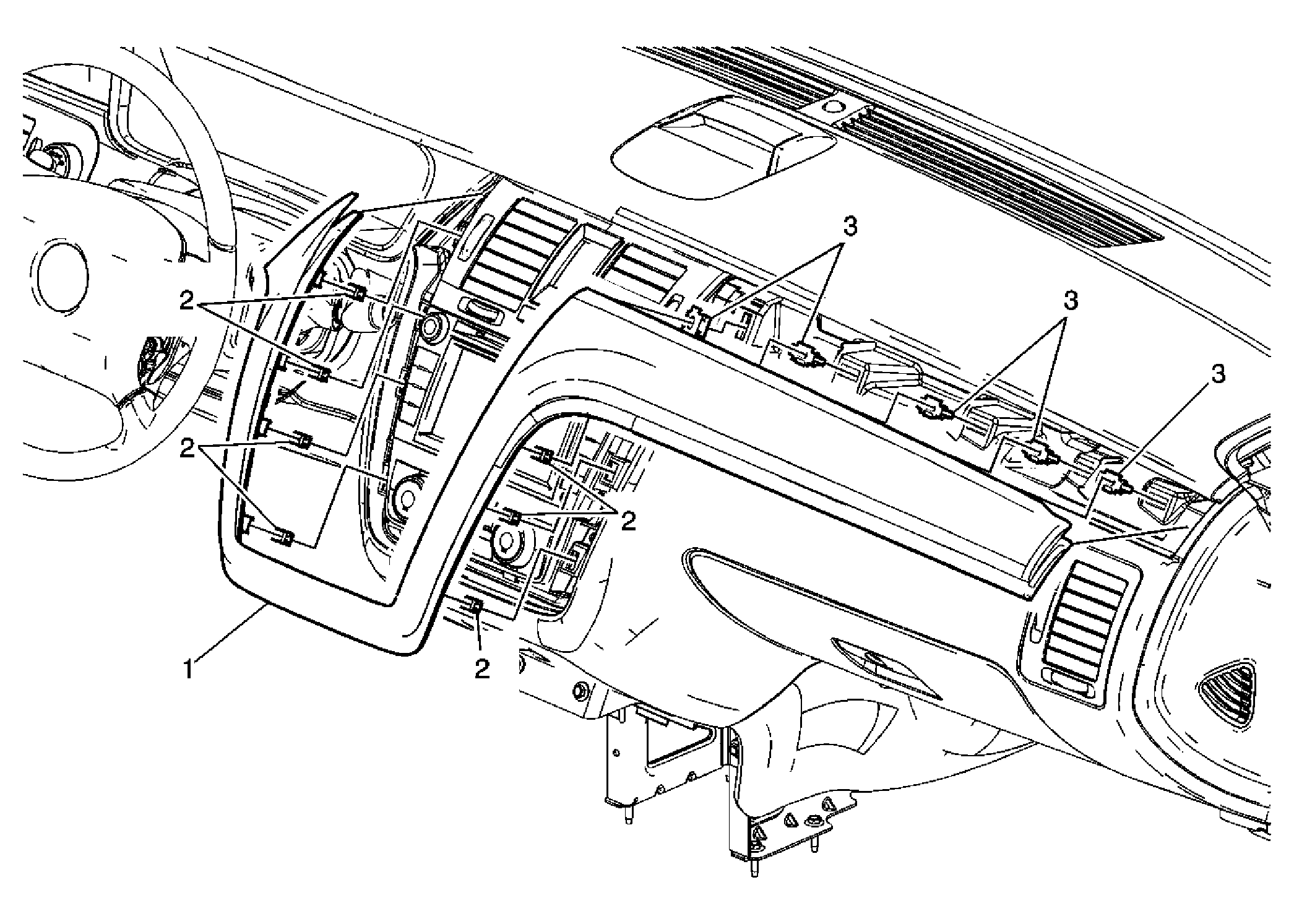

Fig 1: Trim Panel - Instrument Panel (I/P) Center

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Instrument Panel Center Trim Plate Tip: Use J 36346 . See Special Tools .
2	Retainer Clip (Qty: 7)
3	Retainer (Qty: 5)
