Defroster Grille Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

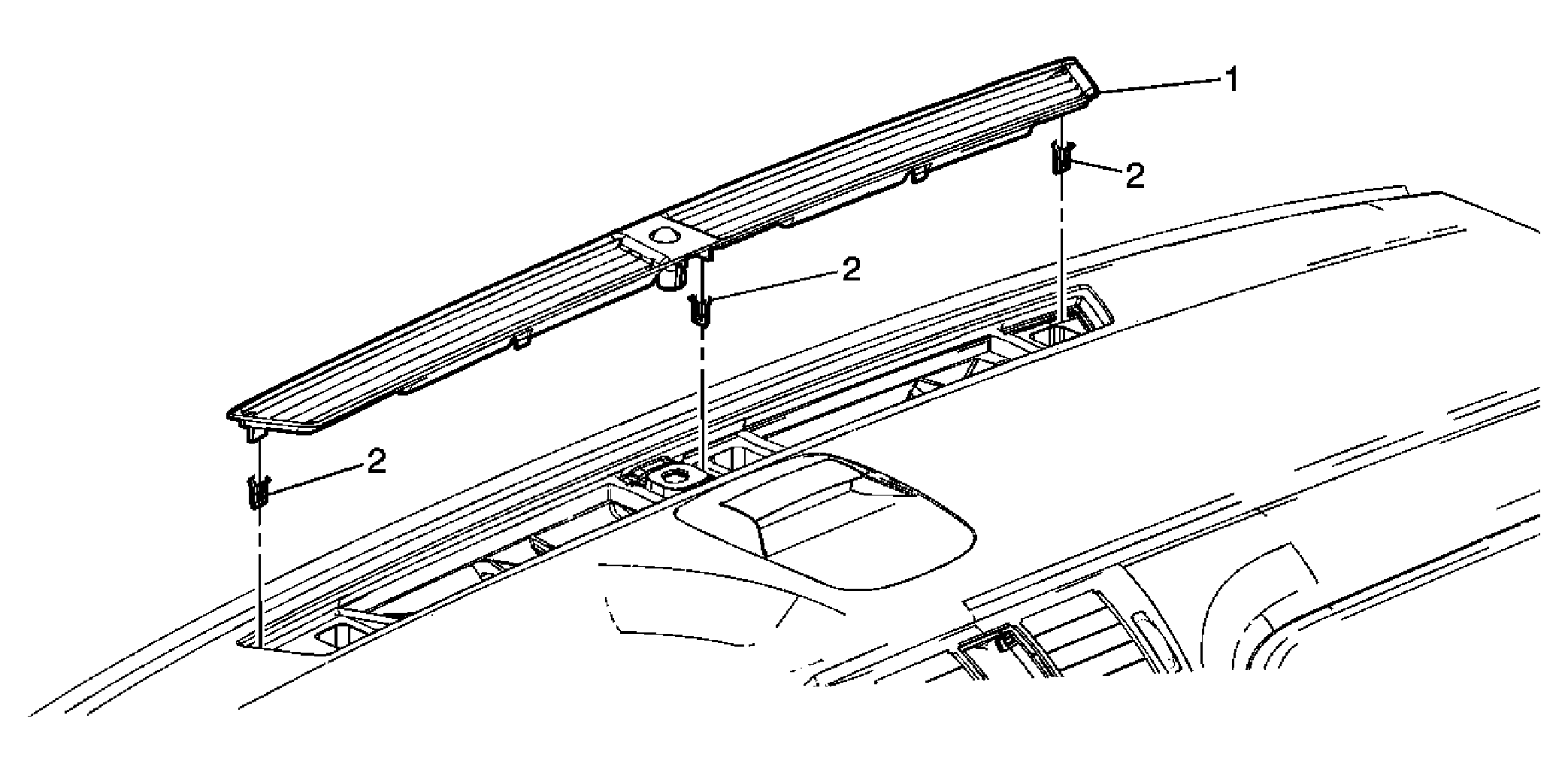

Fig 1: Defroster Grille Replacement
GM1592882Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Grille Assembly, Windshield Defrost
Tip:  Disconnect the electrical connector.
2 Retainer Clip (Qty: 3)
