Instrument Panel Cluster Trim Plate Bezel Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

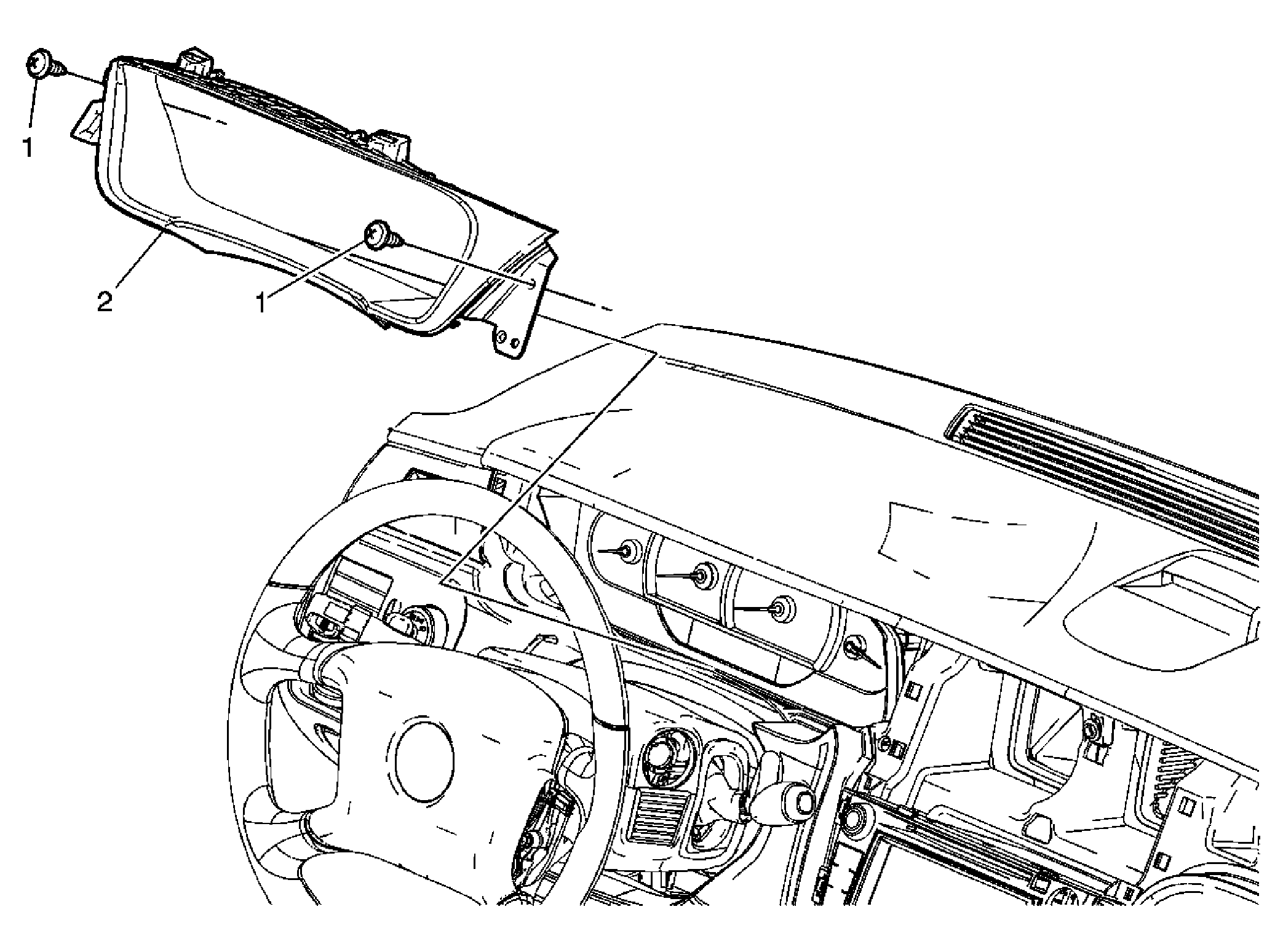

Fig 1: Trim Plate Bezel - Instrument Panel (I/P) Cluster

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Loosen the upper trim pad enough to gain clearance to remove the cluster trim plate. Refer to Instrument Panel Upper Trim Pad Replacement . Remove the instrument panel center air outlet assembly. Refer to Instrument Panel Center Air Outlet Replacement . Remove the instrument panel left accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement - Left Side .
1	Instrument Panel Cluster Trim Plate Screws (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Instrument Panel Cluster Trim Plate

Callout

Component Name

Preliminary Procedures

Loosen the upper trim pad enough to gain clearance to remove the cluster trim plate. Refer to Instrument Panel Upper Trim Pad Replacement .
Remove the instrument panel center air outlet assembly. Refer to Instrument Panel Center Air Outlet Replacement .
Remove the instrument panel left accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement - Left Side .

Instrument Panel Cluster Trim Plate Screws (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 2 N.m (18 lb in)

Instrument Panel Cluster Trim Plate
