Instrument Panel Accessory Trim Plate Replacement - Left Side

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

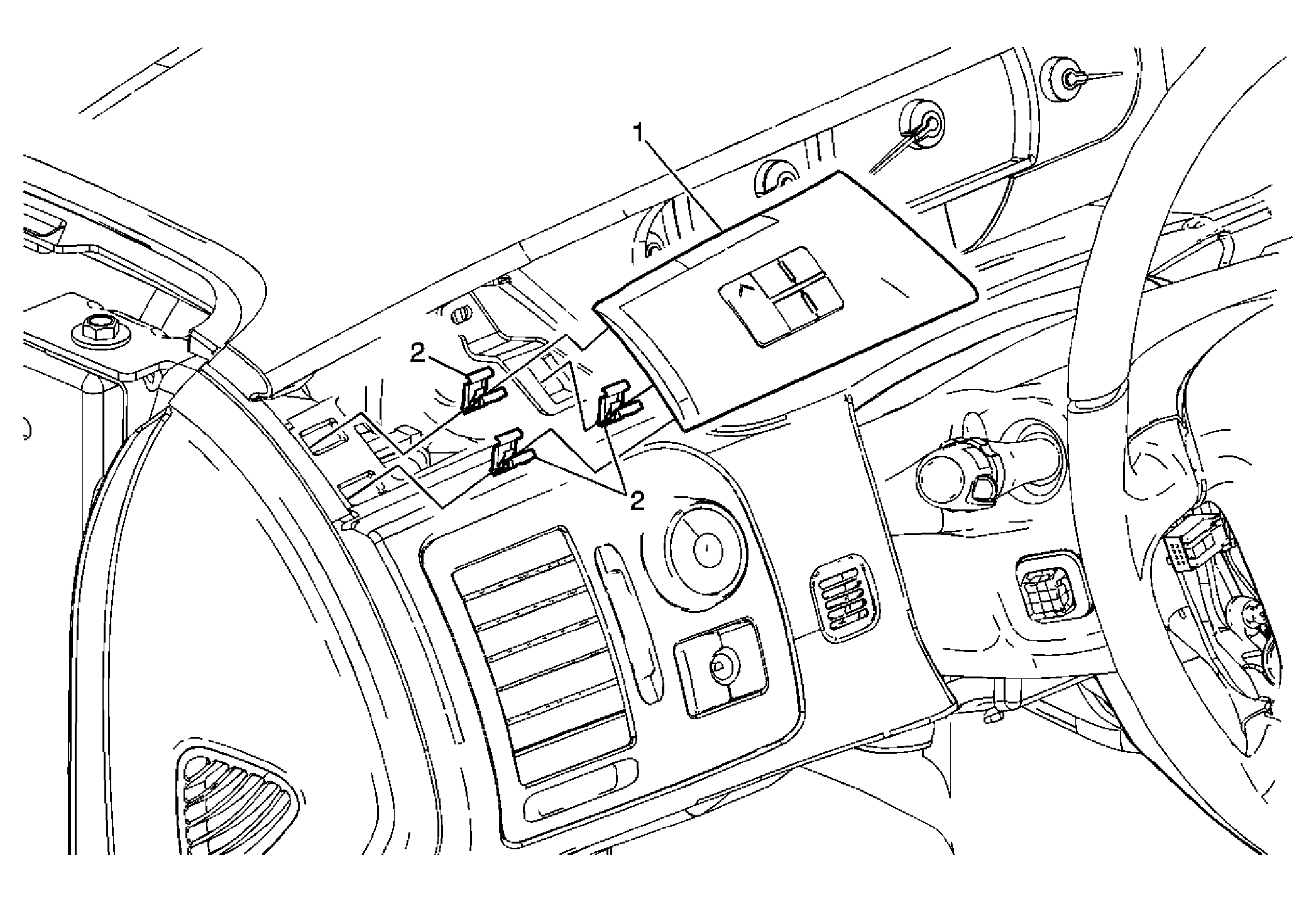

Fig 1: Trim Plate - Instrument Panel (I/P) Accessory Left

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Plate Assembly, Instrument Panel Trim Tip: Disconnect electrical connector. Remove the driver information switch. Refer to Driver Information Display Switch Replacement .
2	Clip, Retainer (Qty: 3)
