Front Floor Panel Carpet Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

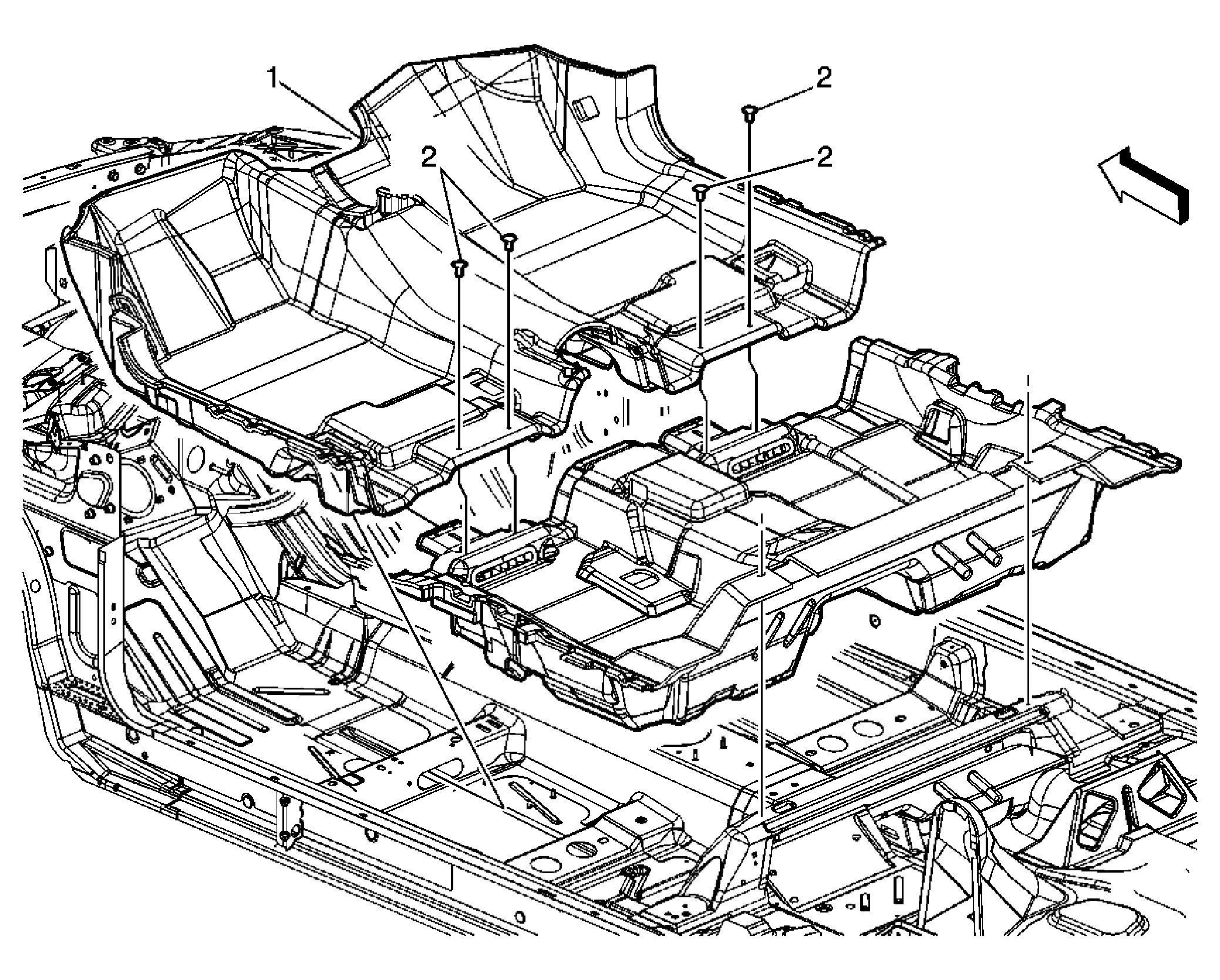

Fig 1: Carpet Replacement - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the seats. Refer to Driver or Passenger Seat Replacement . Remove the floor console. Refer to Console Replacement . Remove the lower center pillar garnish trim. Refer to Center Pillar Lower Garnish Molding Replacement . Remove the front and rear carpet retainers. Refer to Front Side Door Opening Floor Carpet Retainer Replacement and Rear Side Door Opening Floor Carpet Retainer Replacement .
1	Front Carpet Assembly
2	Carpet Retainer

Callout

Component Name

Preliminary Procedures

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the seats. Refer to Driver or Passenger Seat Replacement .
Remove the floor console. Refer to Console Replacement .
Remove the lower center pillar garnish trim. Refer to Center Pillar Lower Garnish Molding Replacement .
Remove the front and rear carpet retainers. Refer to Front Side Door Opening Floor Carpet Retainer Replacement and Rear Side Door Opening Floor Carpet Retainer Replacement .

Front Carpet Assembly

Carpet Retainer
