Console Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

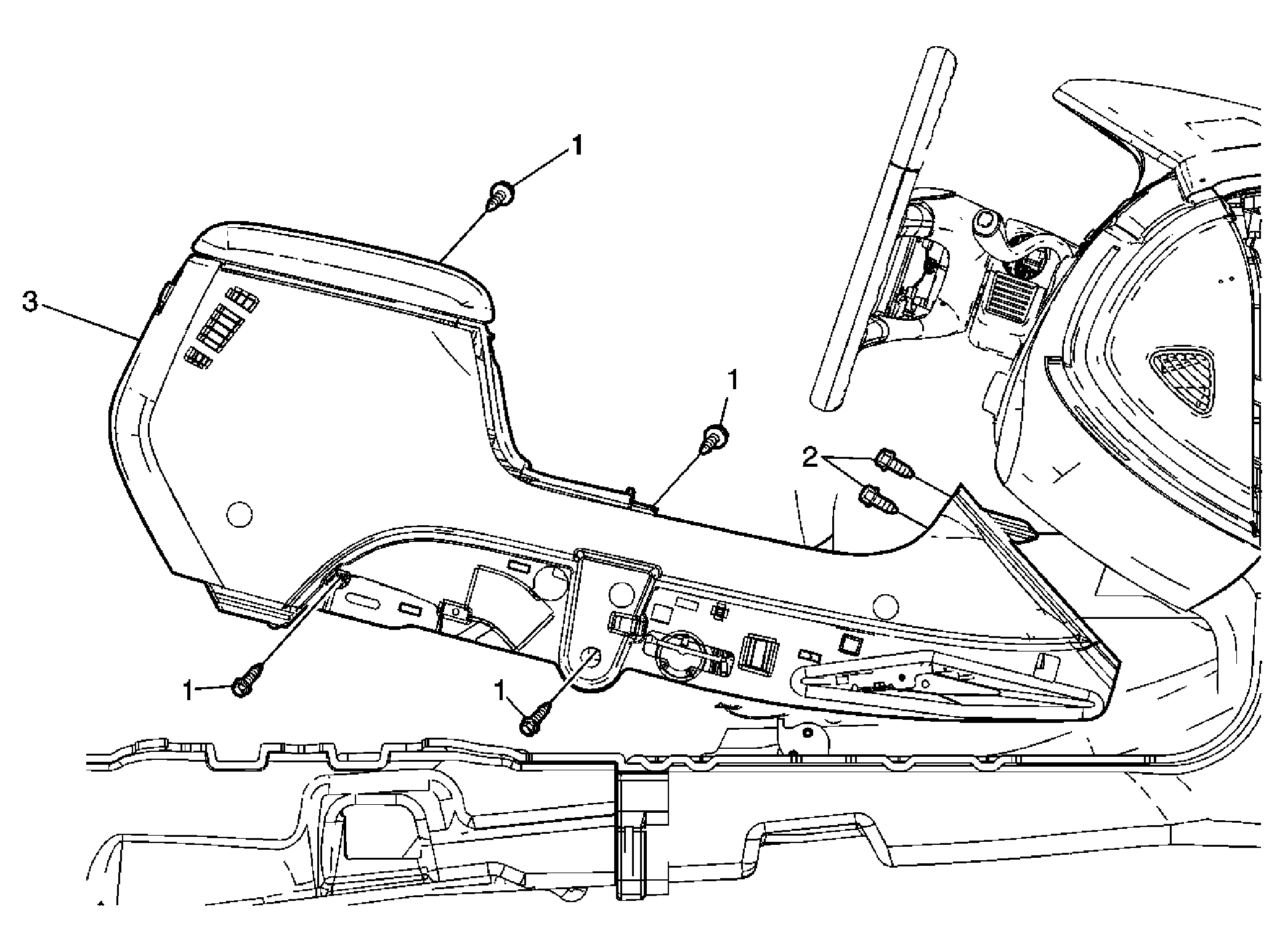

Fig 1: View Of Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the right and left console trim panels. Refer to Front Floor Console Side Trim Panel Replacement - Right Side and Front Floor Console Side Trim Panel Replacement - Left Side . Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement .
1	Front Floor Console Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 9 N.m (80 lb in)
2	Front Floor Console Screw (Qty: 2) Tighten: 2 N.m (18 lb in)
3	Front Floor Console Assembly Tip: Disconnect the electrical connector.
