Front Side Door Opening Floor Carpet Retainer Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

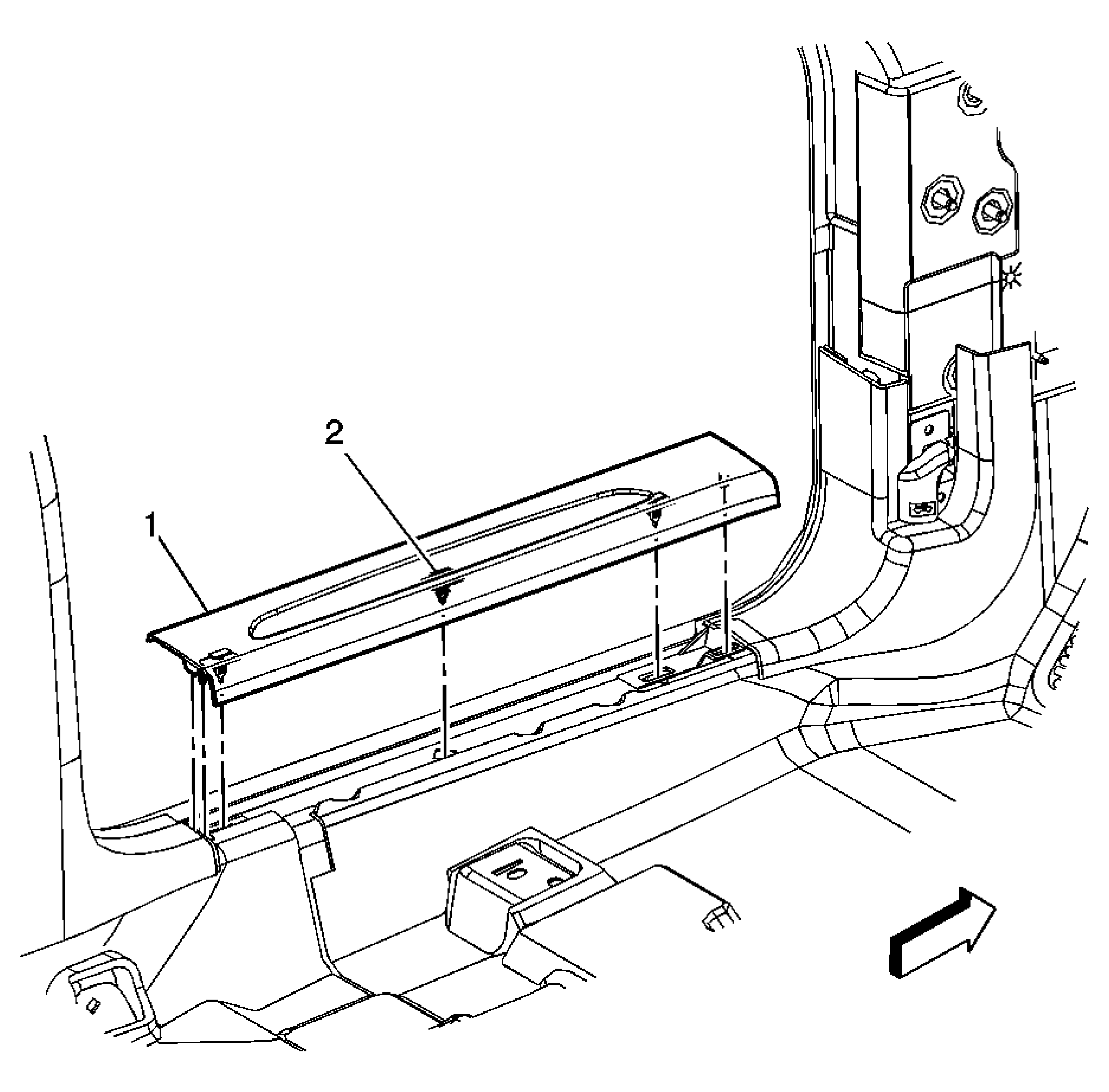

Fig 1: Carpet Retainer Replacement - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Front Side Door Carpet Retainer Assembly
2	Front Side Door Carpet Retainer
