Center Pillar Lower Garnish Molding Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

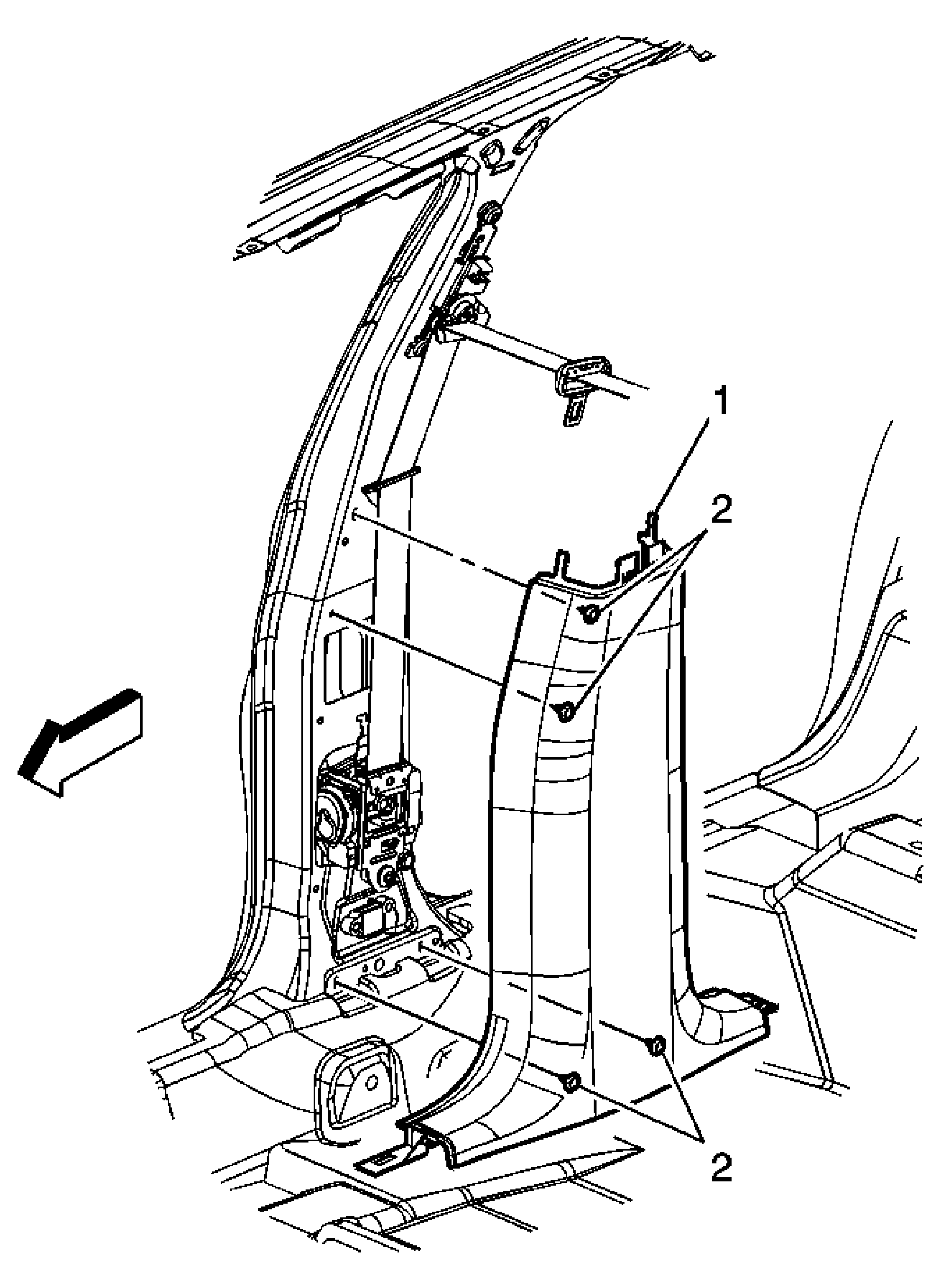

Fig 1: Garnish Molding Replacement - Center Pillar Lower

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the front carpet retainer. Refer to Front Side Door Opening Floor Carpet Retainer Replacement . Loosen the rear carpet retainer. Refer to Rear Side Door Opening Floor Carpet Retainer Replacement .
1	Center Pillar Trim Panel Assembly
2	Center Pillar Trim Retainer (Qty: 4) Tip: Remove upper and lower trim as an assembly, and separate the panels.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove the front carpet retainer. Refer to Front Side Door Opening Floor Carpet Retainer Replacement .
Loosen the rear carpet retainer. Refer to Rear Side Door Opening Floor Carpet Retainer Replacement .

Center Pillar Trim Panel Assembly

Center Pillar Trim Retainer (Qty: 4)
Tip: Remove upper and lower trim as an assembly, and separate the panels.
