Door Inside Handle Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

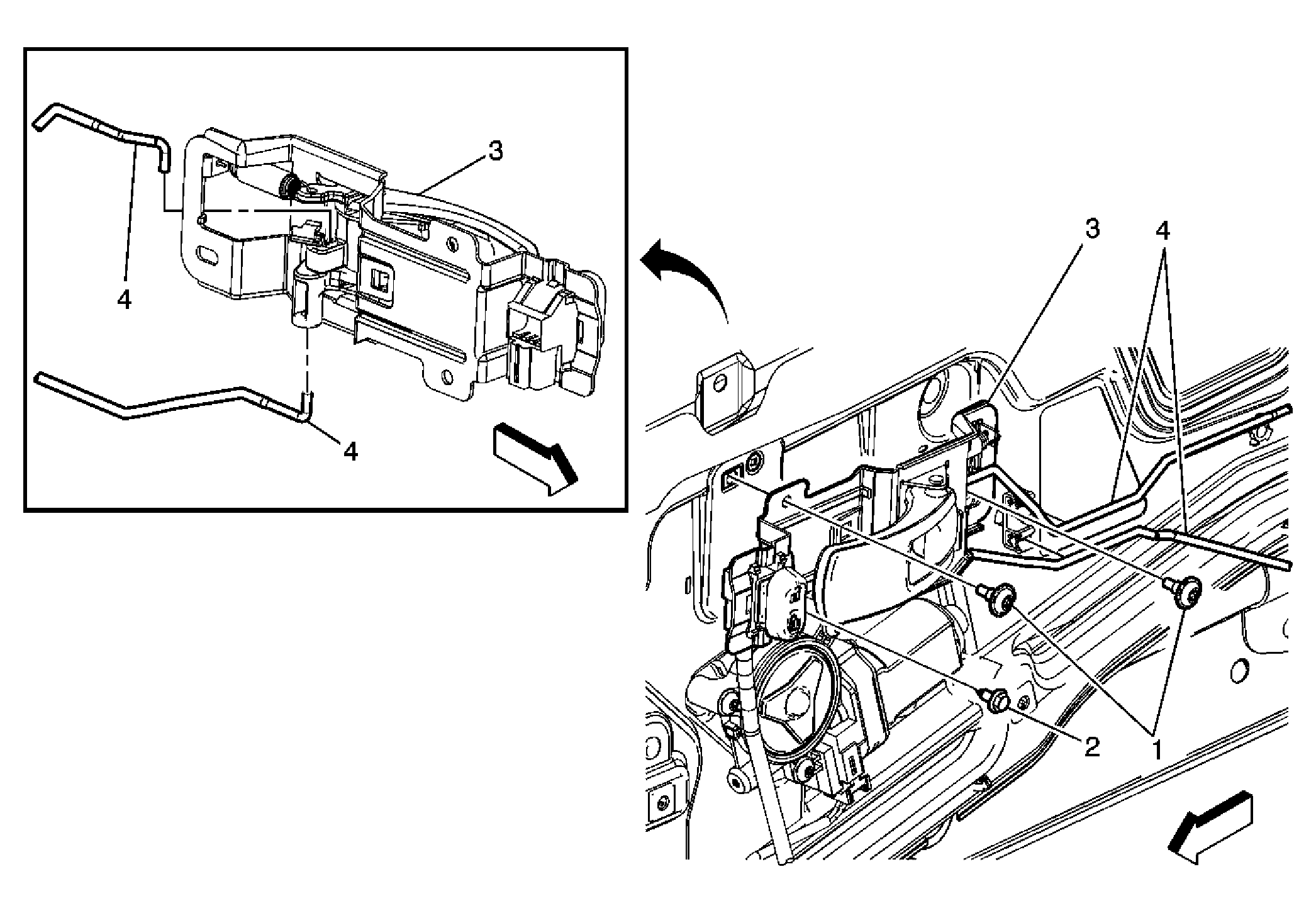

Fig 1: View Of Door Inside Handle & Attachments

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove side door trim panel upper extension. Refer to Upper Extension Trim Panel Replacement (Front Side Door) or Upper Extension Trim Panel Replacement (Rear Side Door) . Remove side door handle trim bezel. Refer to Door Handle Bezel Replacement (Rear Side Door) or Door Handle Bezel Replacement (Front Side Door) . Remove side door trim panel. Refer to Front Side Door Trim Panel Replacement and Rear Side Door Trim Panel Replacement .
1	Side Door Inside Handle Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m (22 lb in)
2	Side Door Inside Handle Bolt Tighten: 2.5 N.m (22 lb in)
3	Side Door Inside Handle Assembly Procedure: Disconnect the electrical connector.
4	Side Door Locking Rod Assembly (Qty: 2) Tip: Use a flat-bladed tool to disengage the rods from the retaining clips.
