Front Side Door Trim Panel Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

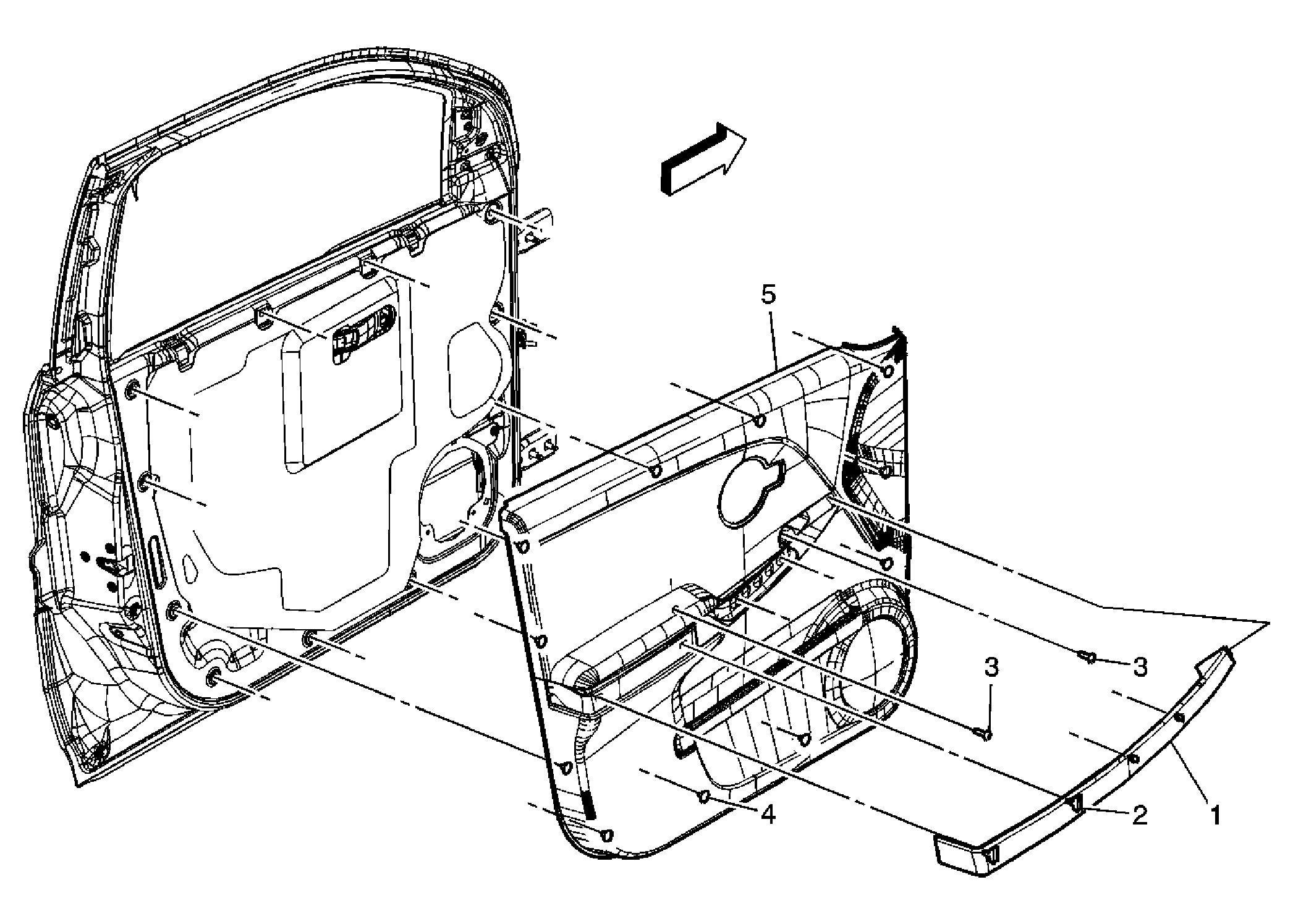

Fig 1: View Of Front Side Door Trim Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove upper extension trim panel. Refer to Upper Extension Trim Panel Replacement (Front Side Door) or Upper Extension Trim Panel Replacement (Rear Side Door) . Remove door handle bezel. Refer to Door Handle Bezel Replacement (Rear Side Door) or Door Handle Bezel Replacement (Front Side Door) .
1	Front Side Door Trim Panel Insert Assembly
2	Front Side Door Trim Panel Insert Retainer (Qty: 7)
3	Front Side Door Trim Panel Retainer Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m (22 lb in)
4	Front Side Door Trim Panel Retainer (Qty: 11)
5	Front Side Door Trim Panel Assembly
