Upper Extension Trim Panel Replacement (Front Side Door)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

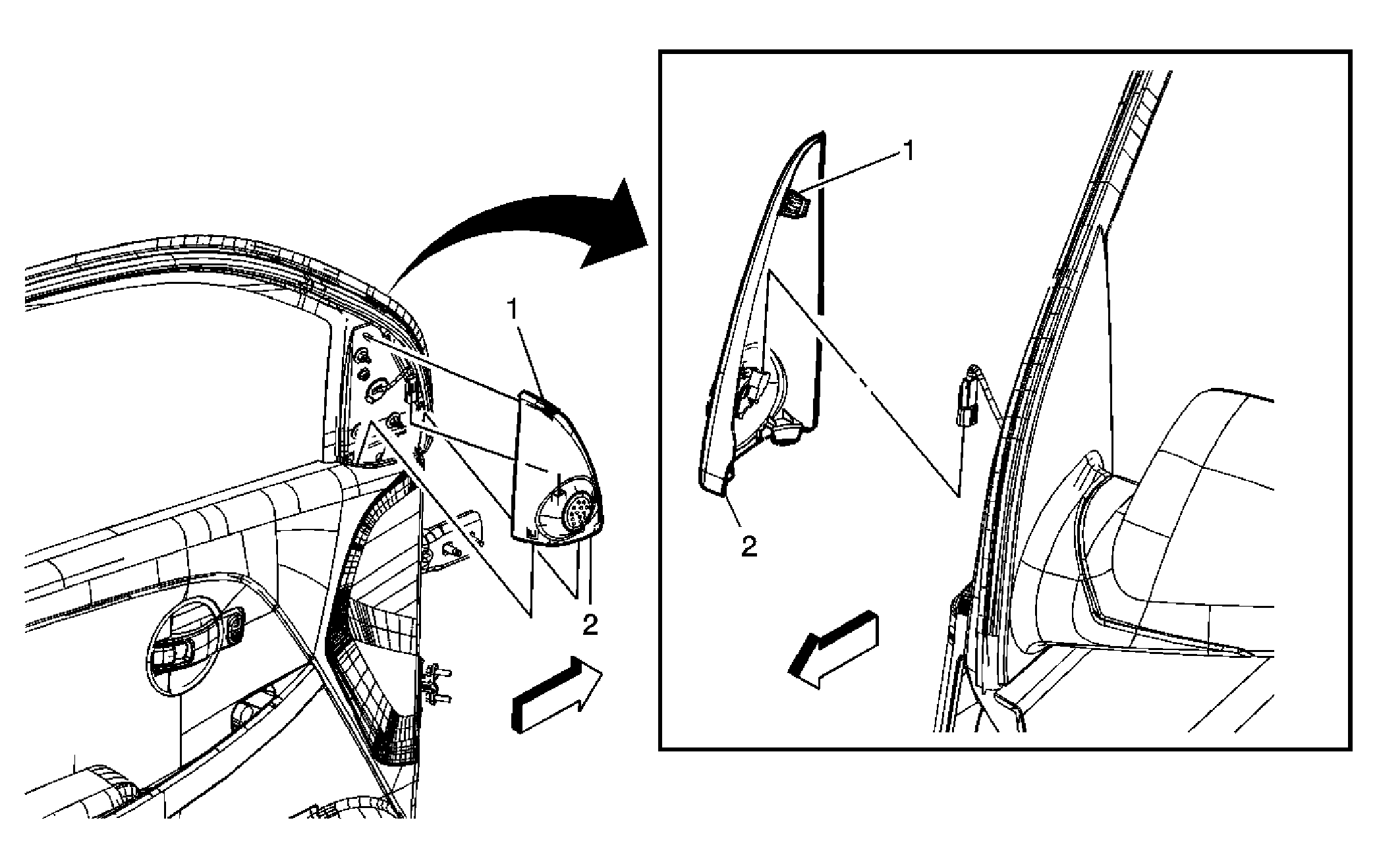

Fig 1: View Of Upper Extension Trim Panel (Front Side Door)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Side Door Upper Trim Panel Retainer (Qty: 1)
2	Front Side Door Upper Trim Panel Assembly Procedures Pull on the top end of extension panel to disengage attaching clip. Lift extension panel out from behind the door trim panel. Use care to ensure sound deadener is in correct position when installing trim to door. Disconnect electrical connectors.

Callout

Component Name

Front Side Door Upper Trim Panel Retainer (Qty: 1)

Front Side Door Upper Trim Panel Assembly

Procedures

Pull on the top end of extension panel to disengage attaching clip.
Lift extension panel out from behind the door trim panel.
Use care to ensure sound deadener is in correct position when installing trim to door.
Disconnect electrical connectors.
