Door Handle Bezel Replacement (Rear Side Door)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

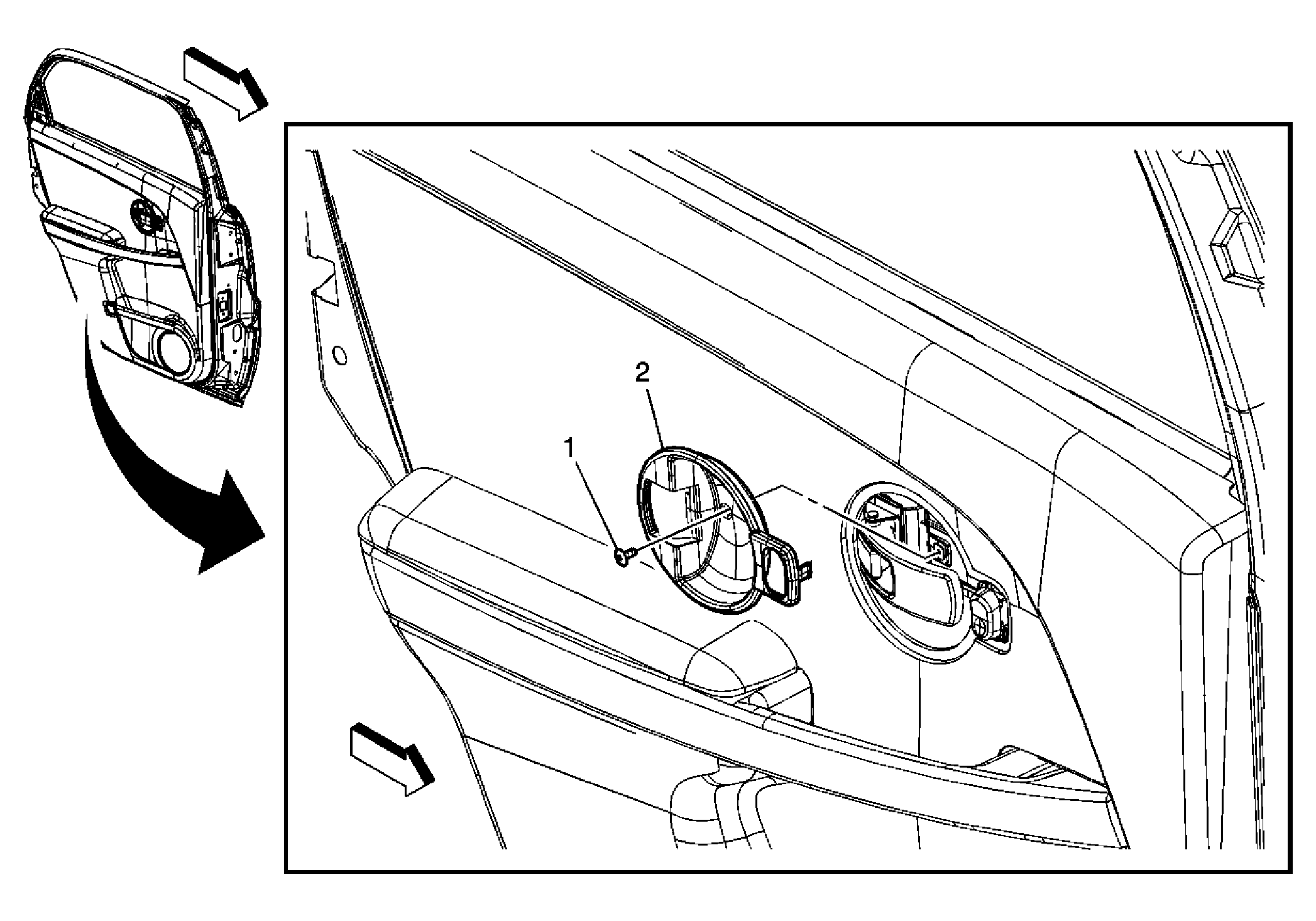

Fig 1: View Of Door Handle Bezel (Rear Side Door)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Side Door Handle Bezel Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m (22 lb in)
2	Rear Side Door Handle Bezel Assembly
