Instrument Panel Lower Trim Panel Replacement - Right Side

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

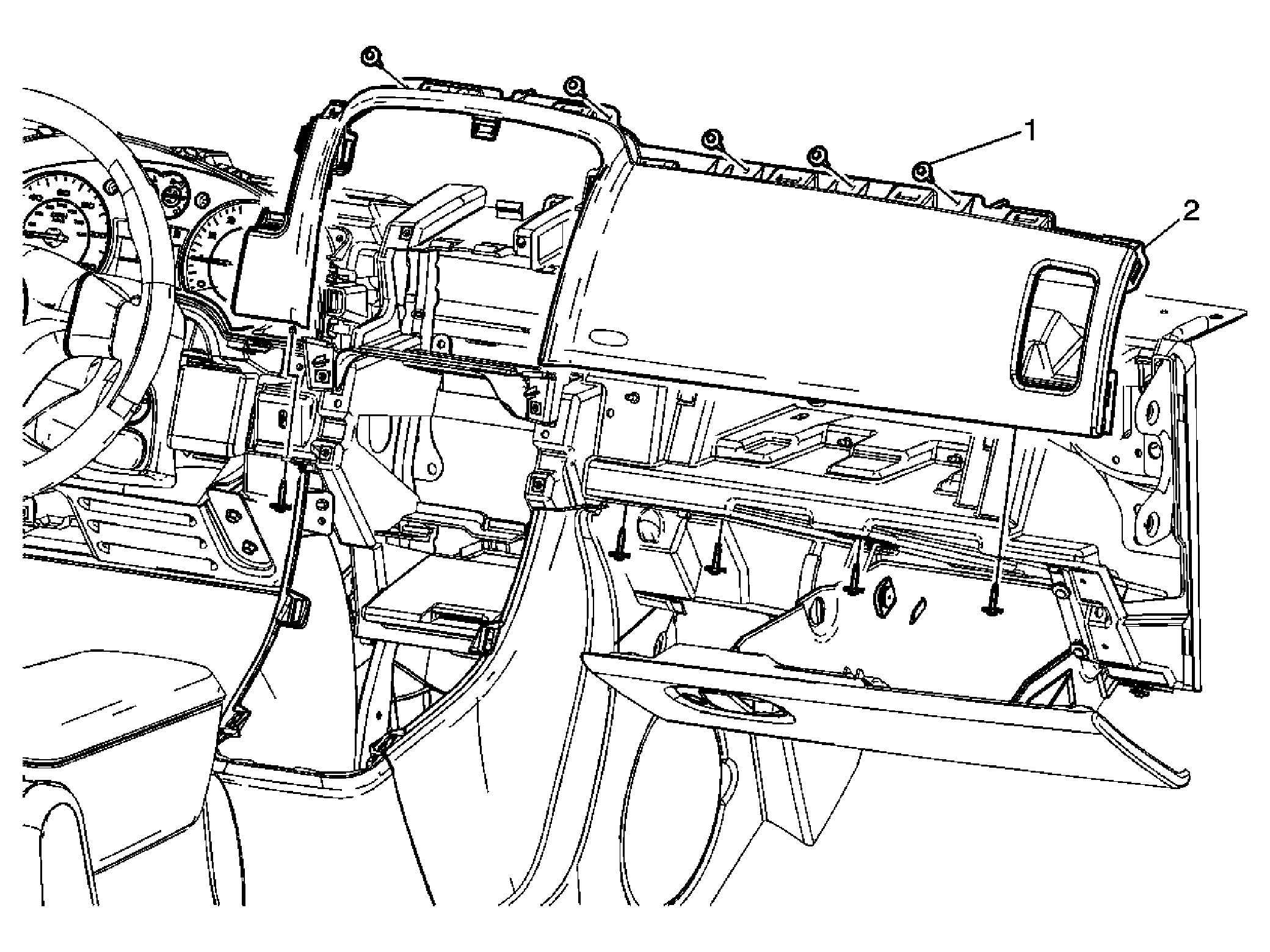

Fig 1: View Of Instrument Panel Lower Trim Panel
GM1719494Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the instrument panel cluster trim plate. Refer to Instrument Cluster Trim Panel Replacement .
  2. Remove the instrument panel accessory trim plate bezel. Refer to Instrument Panel Accessory Bezel Replacement .
  3. Remove the right instrument panel air outlet assembly. Refer to Instrument Panel Outer Air Outlet Replacement - Right Side .
  4. Remove the instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement .
  5. Remove the right and left console side trim panels. Refer to Front Floor Console Side Trim Panel Replacement - Right Side  and Front Floor Console Side Trim Panel Replacement - Left Side .
  6. Open the instrument panel compartment.
1 Instrument Panel Lower Trim Panel Screw (Qty: 10)
CAUTION: Refer to Fastener Caution .

Tighten:  2.5 N.m (22 lb in)
2 Instrument Panel Lower Trim Panel Right
