Instrument Panel Outer Air Outlet Replacement - Right Side
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

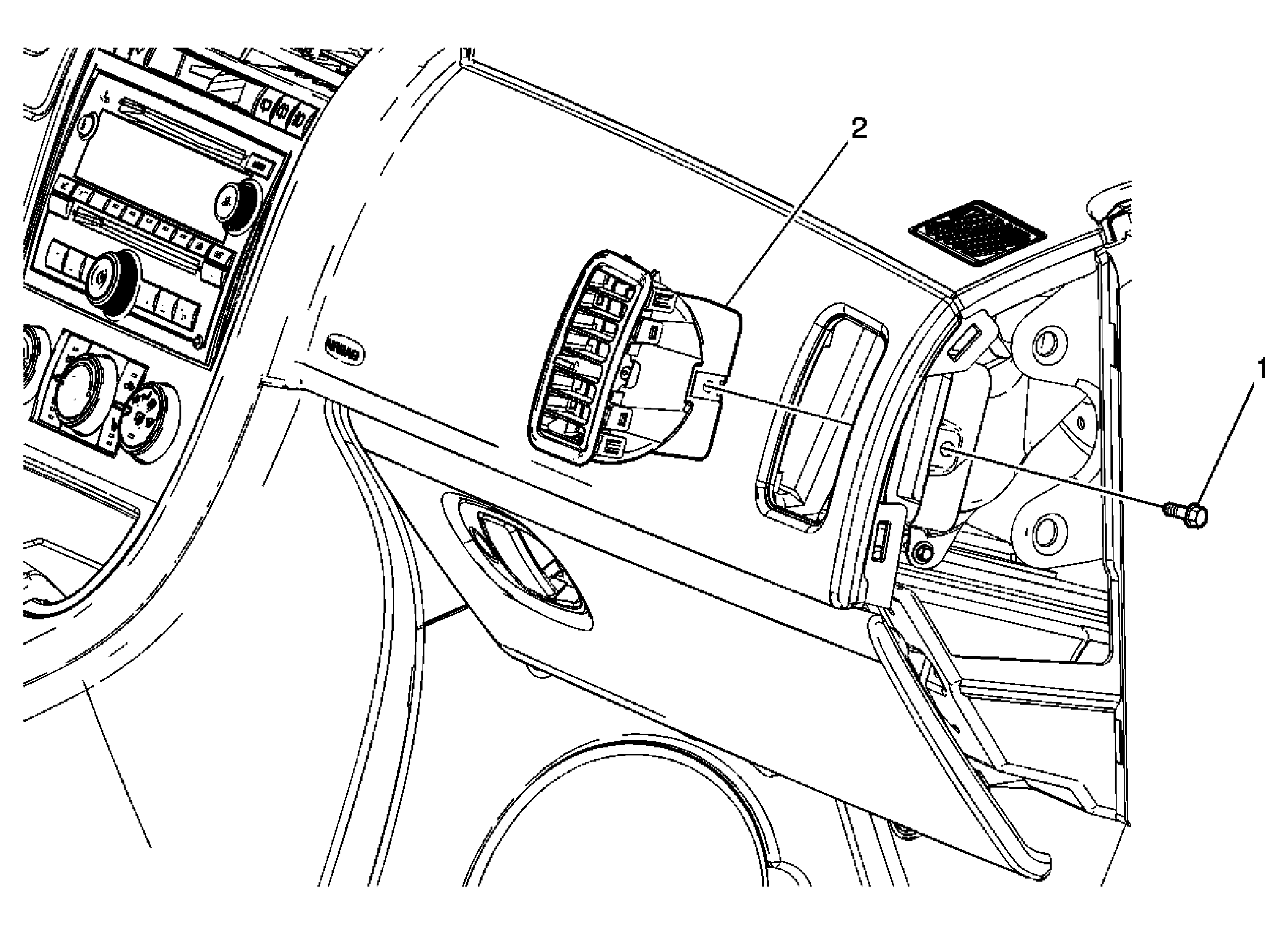

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the right instrument panel outer trim panel. Refer to Instrument Panel Outer Trim Cover Replacement - Right Side . |
|
| 1 | Instrument Panel Right Air Outlet Screw
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 2 | Instrument Panel Air Outlet Assembly Procedure: Carefully pry out the air outlet assembly using a plastic flat bladed tool. |
