Rear Side Door Window Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

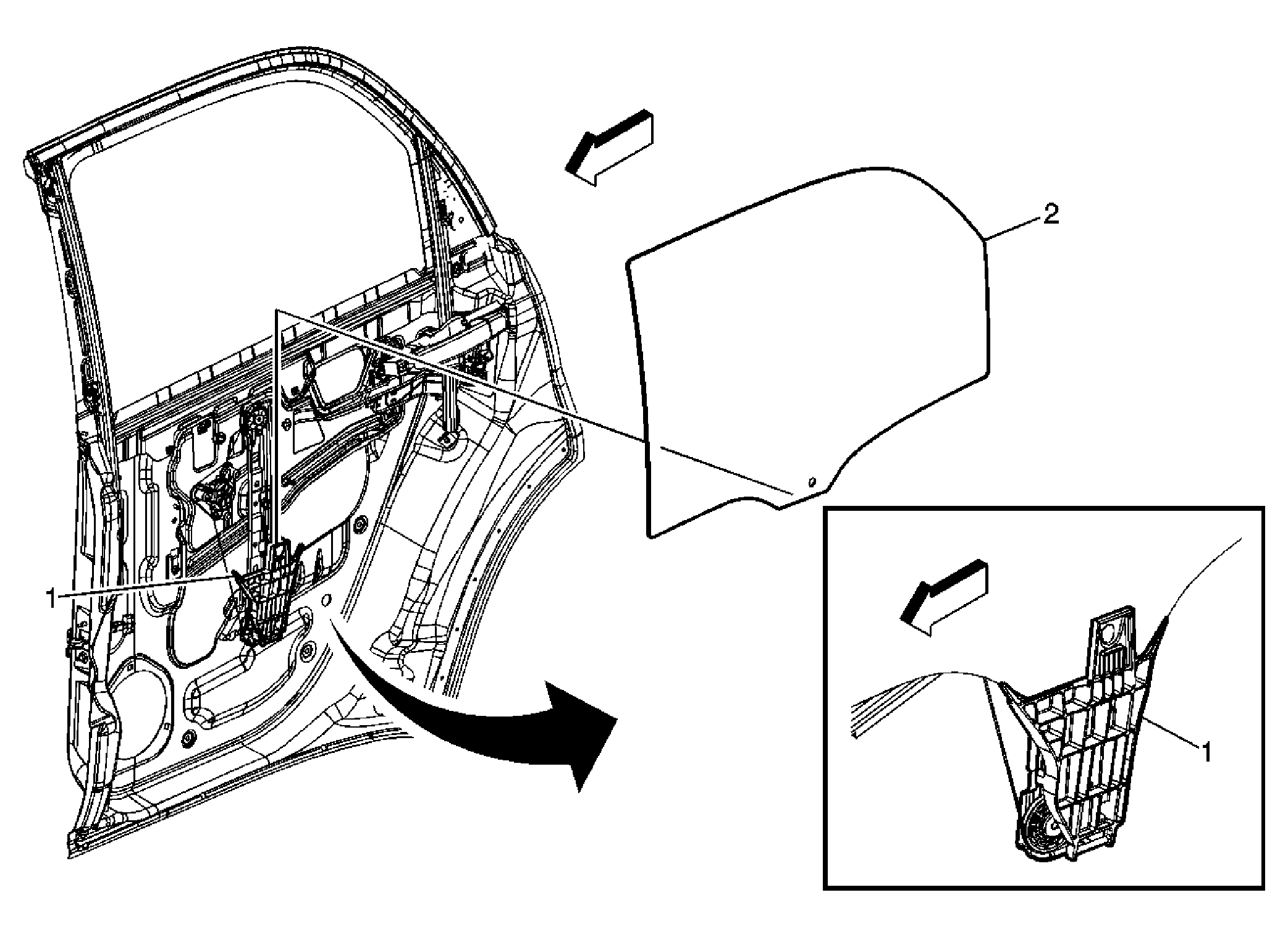

Fig 1: View Of Rear Side Door Window
GM1719099Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .

Preliminary Procedure

  1. Remove rear door trim panel. Refer to Rear Side Door Trim Panel Replacement .
  2. Remove rear door water deflector. Refer to Rear Side Door Water Deflector Replacement .
  3. Remove inner belt seal. Refer to Rear Side Door Window Inner Sealing Strip Replacement .
  4. Remove rear door frame appliques. Refer to Rear Door Frame Applique Replacement .
  5. Remove rear window run channel. Refer to Rear Side Door Window Channel Replacement .
  6. Lower window to access release tab.
1 Rear Side Door Window Module Assembly
Tip:  Depress release tab with a flat-bladed tool.
2 Rear Side Door Window
Tip:
  1. Pull window out of the regulator guide plate.
  2. Slide window down and out of primary run channels.
  3. Remove window by tilting outboard and pulling window out of door.
  4. When re-installing, slide window into door through outside.
  5. Install window into primary run channels and position into regulator guide plate.
  6. Operate window to inspect operation.
