Rear Side Door Window Channel Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

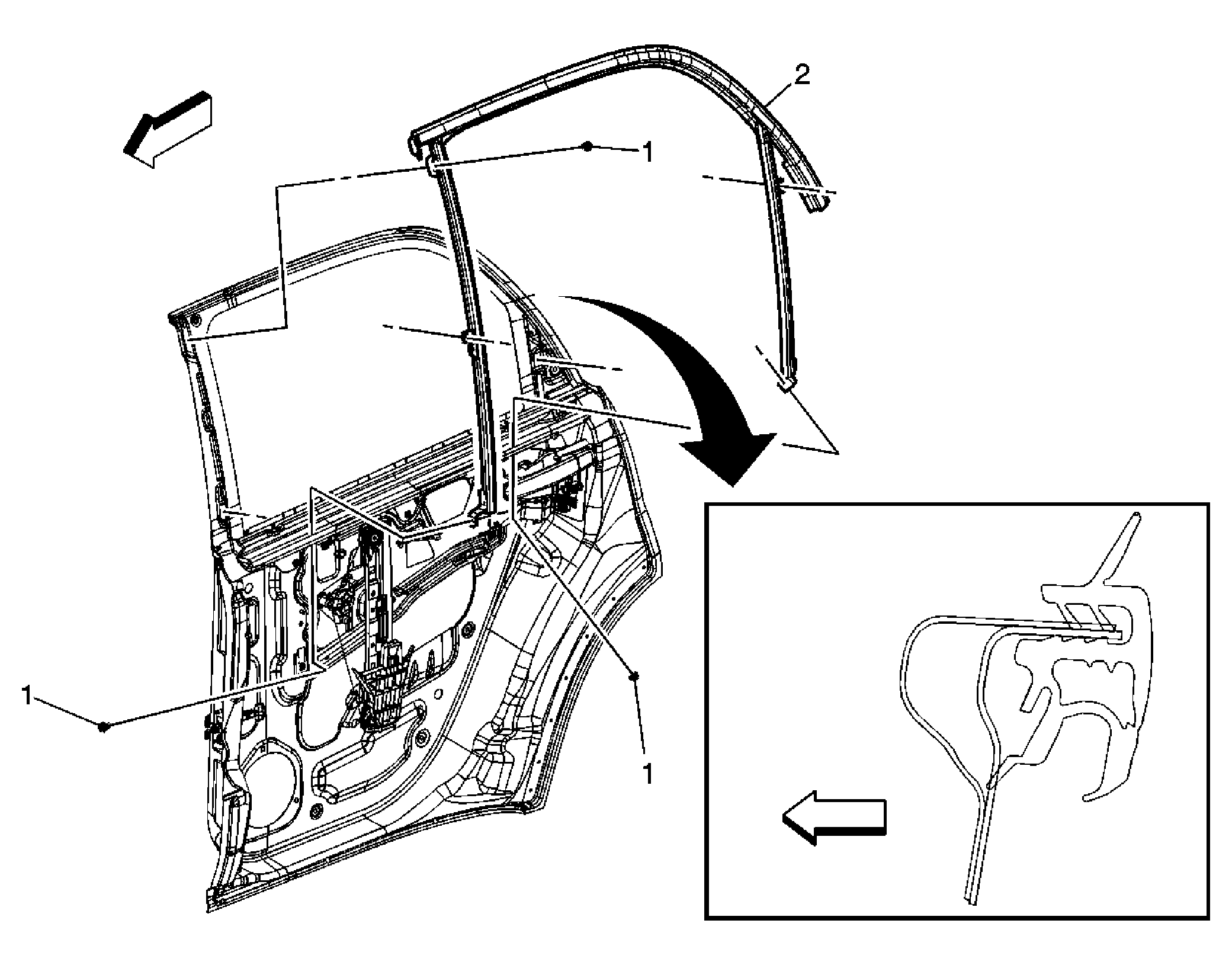

Fig 1: View Of Rear Side Door Window Channel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear door window. Refer to Rear Side Door Window Replacement . Remove the rear side door window inner sealing strip. Refer to Rear Side Door Window Inner Sealing Strip Replacement . Remove the rear door applique. Refer to Rear Door Frame Applique Replacement .
1	Rear Side Door Window Channel Bolt (Qty: 5) CAUTION: Refer to Fastener Caution . Tighten: 8 N.m (71 lb in)
2	Rear Side Door Window Channel Assembly Procedure Starting from the rear corner of the door, remove the seal from the door header flange. When re-installing, start from the rear corner.

Callout

Component Name

Preliminary Procedures

Remove the rear door window. Refer to Rear Side Door Window Replacement .
Remove the rear side door window inner sealing strip. Refer to Rear Side Door Window Inner Sealing Strip Replacement .
Remove the rear door applique. Refer to Rear Door Frame Applique Replacement .

Rear Side Door Window Channel Bolt (Qty: 5)

CAUTION: Refer to Fastener Caution .

Tighten: 8 N.m (71 lb in)

Rear Side Door Window Channel Assembly

Procedure

Starting from the rear corner of the door, remove the seal from the door header flange.
When re-installing, start from the rear corner.
