Rear Door Frame Applique Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

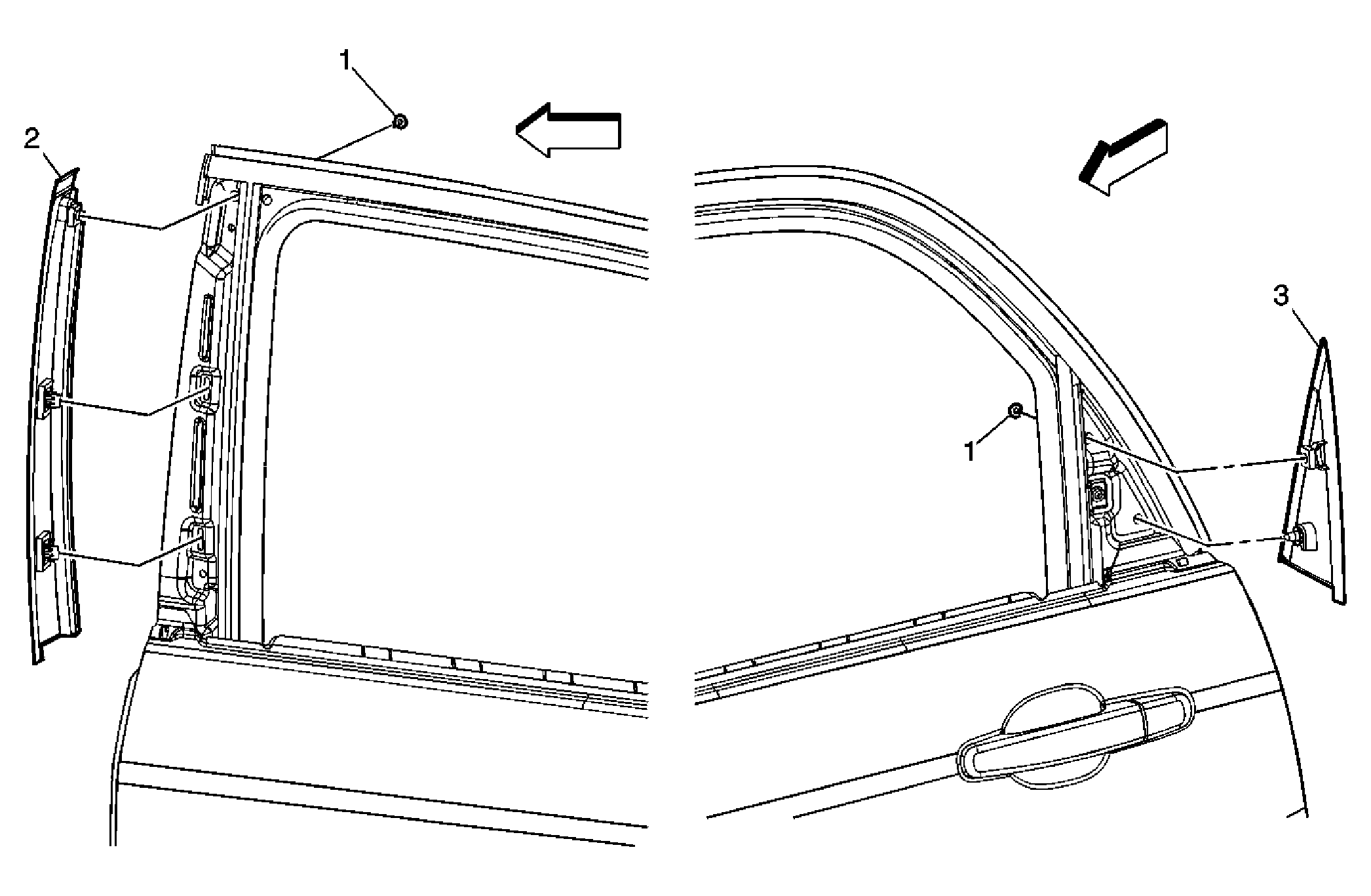

| Callout | Component Name |
|---|---|
| 1 | Rear Side Door Frame Applique Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (20 lb in) |
| 2 | Rear Side Door Frame Applique Front Assembly |
| 3 | Rear Side Door Frame Applique Rear Assembly |
