Rear Side Door Water Deflector Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

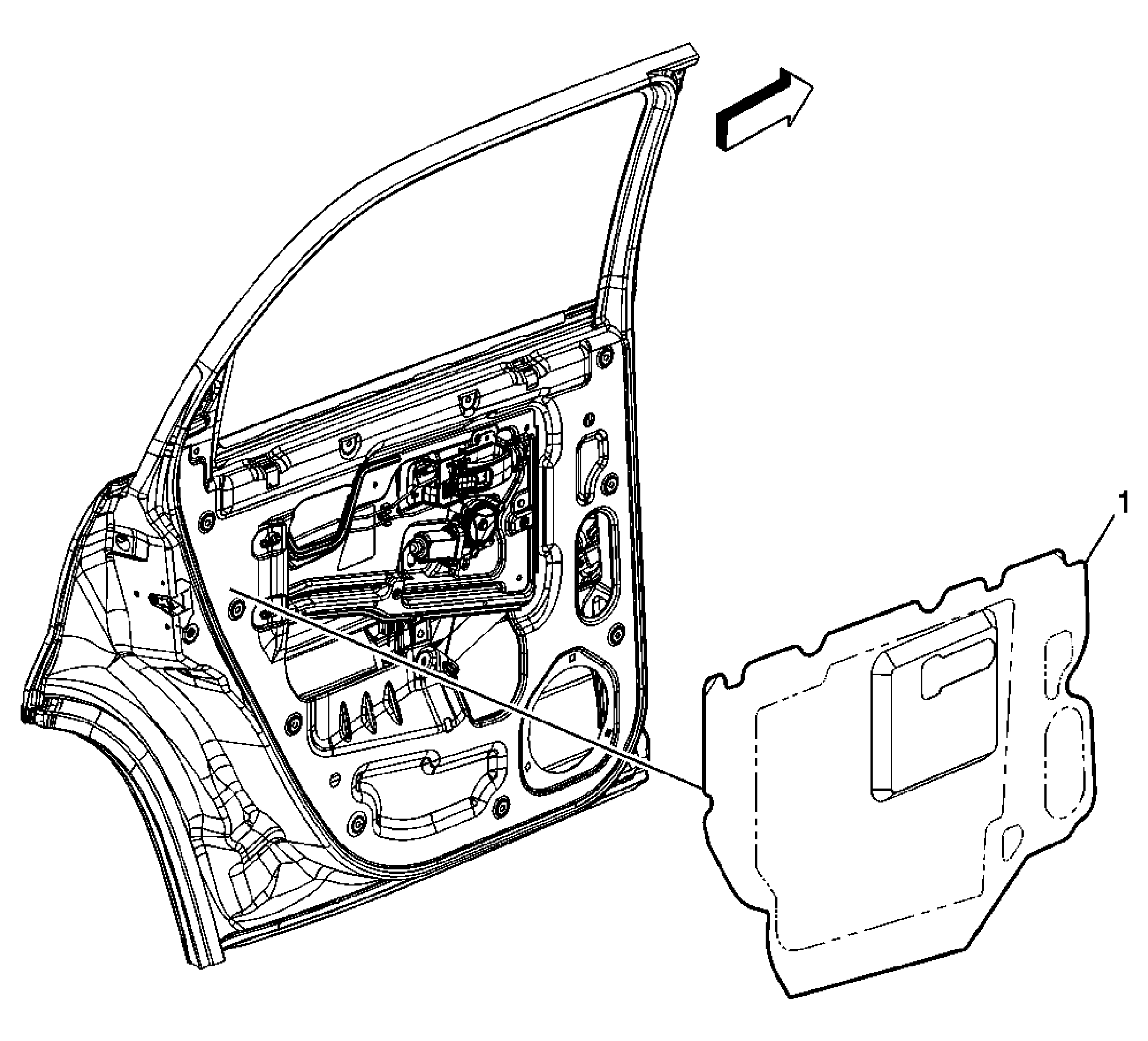

Fig 1: View Of Rear Side Door Water Deflector

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove front door trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Rear Side Door Trim Panel Seal Assembly Tip: To remove door seal, start at top left corner and pull downward. When re-applying door seal, align top trimline to door features, then adhere top surface. Adhere bottom center first and then continue outward and upward. Wet-out adhesive around entire perimeter to ensure a proper seal.
