Front Seat Cushion Cover and Pad Replacement

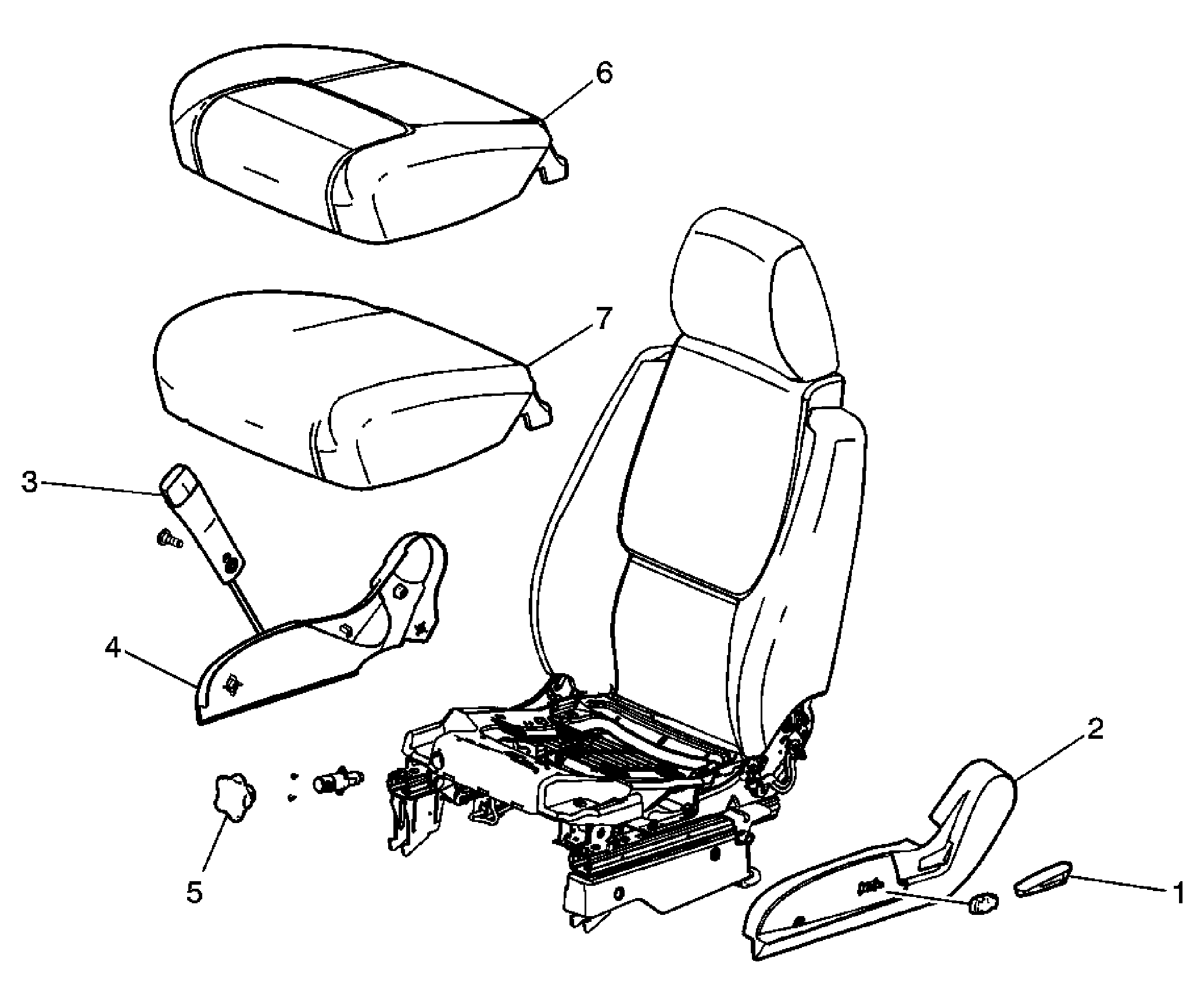

Fig 1: View Of Front Seat Cushion Cover & Pad

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications . Preliminary Procedure:  Remove the front seat. Refer to Front Seat Replacement - Bucket .
1	Front Seat Recliner Handle Tip:  Pull firmly forward on the handle to remove.
2	Front Seat Outer Adjuster Finish Cover Refer to Front Seat Cushion Outer Trim Panel Replacement (Non-Fold Flat)  or Front Seat Cushion Outer Trim Panel Replacement (Fold Flat) .
3	Front Seat Belt Buckle Refer to Front Seat Belt Buckle Replacement .
4	Front Seat Inner Adjuster Finish Panel Refer to Front Seat Cushion Inner Trim Panel Replacement (Non-Fold Flat) .
5	Front Seat Lumbar Support Actuator Knob Tip:  Adjust the lumbar knob until the lumbar is in the setting of the least support. Remove the lumbar knob by pulling firmly away from the seat.
6	Front Seat Cushion Cover Tip:  Remove the seat cushion frame bolts and seat cushion assembly from the seat. Disconnect the J-hook retainers. Disengage the J-strip at the rear of the cushion. Remove the seat cushion cover from the pad by carefully disengaging the hook and loop retainers.
7	Front Seat Cushion Pad
