Front Seat Cushion Outer Trim Panel Replacement (Non-Fold Flat)

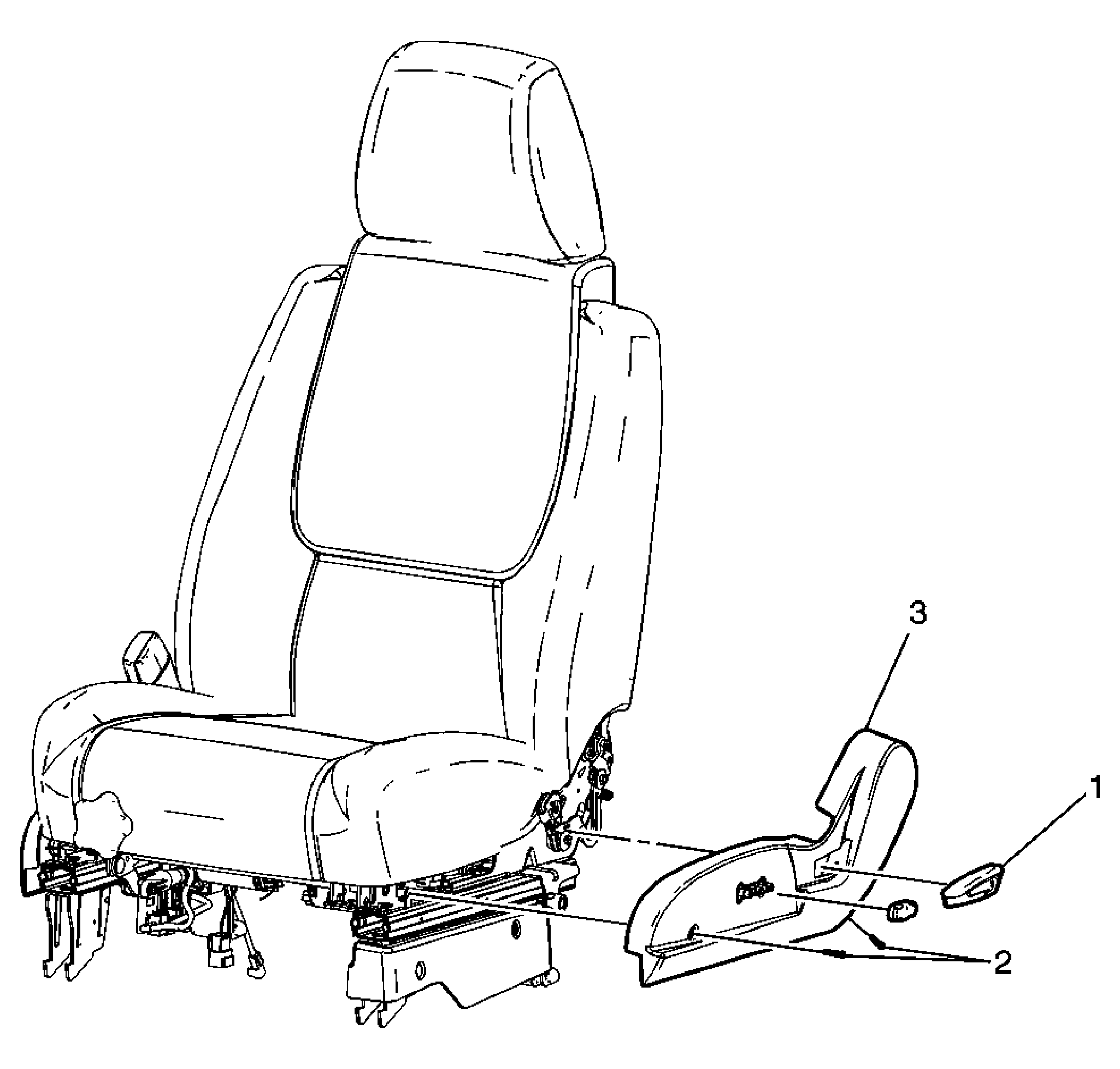

Fig 1: View Of Front Seat Cushion Outer Trim Panel (Non-Fold Flat)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Front Seat Recliner Handle Tip:  Pull firmly forward on the handle to remove.
2	Front Seat Outer Adjuster Finish Cover Screw (Qty: 2) Tighten:  2.5 N.m (22 lb in)
3	Front Seat Outer Adjuster Finish Cover Tip:  Disconnect the electrical connector.
