Front Seat Cushion Inner Trim Panel Replacement (Non-Fold Flat)

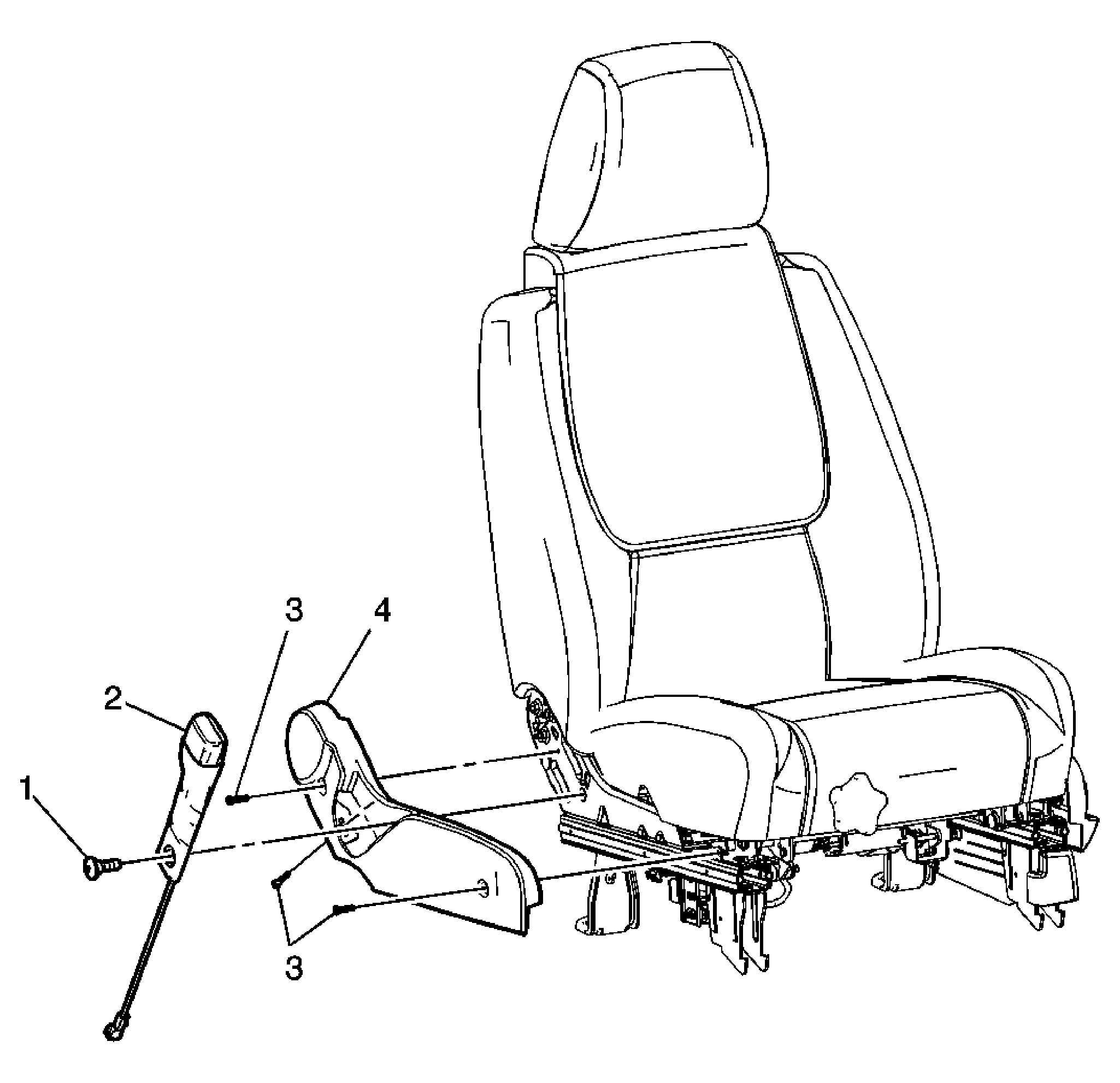

Fig 1: View Of Front Seat Cushion Inner Trim Panel (Non-Fold Flat)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Front Seat Belt Buckle Bolt Tighten:  2 N.m (18 lb in)
2	Front Seat Belt Buckle Refer to Front Seat Belt Buckle Replacement .
3	Front Seat Inner Adjuster Finish Panel Screw (Qty: 3) Tighten:  2 N.m (18 lb in)
4	Front Seat Inner Adjuster Finish Panel
